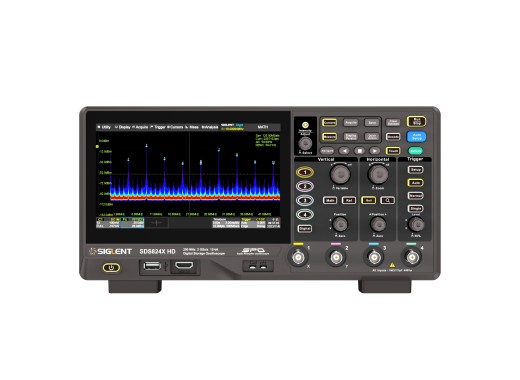

Siglent SDS824X HD oscilloscope
Details
The Siglent SDS824X HD is a 4-channel oscilloscope and the 200MHz version in the SDS800X HD series. The SDS800X HD series have a 12-bit resolution to reduce quantization uncertainty and in turn improve signal fidelity and analysis capabilities. This oscilloscope also features a 100Mpts single channel memory depth as well as a 2GSa/s sample rate. Furthermore, the oscilloscopes from this series have a 7" touchscreen display with a resolution of 1024 x 600 pixels and a high capture rate of 500,000 waveforms per second. Also included are 256-Level intensity grading and color temperature display modes. The SDS800X HD series include bode plot analysis, mask testing and optional power analysis.
A large number of frames with data can be stored for further analysis. In addition, the SDS800X HD series oscilloscopes have an ultra-low noise floor, making measurements on very small signals possible and resulting in cleaner signals. Moreover, multiple interface options are included as there is USB host/device in addition to: LAN, Pass/Fail and trigger out. Remote control via a web browser is also possible due to the built-in web server. The SDS800X HD series can also be extended with several options such as a logic analyser that can be found in the options table below.
Siglent offers a wide range of software options for their products, often adding a lot of functionalities. For all information about the available options, please refer to the user manual at the bottom of this page.
Model overview
| Model | Bandwidth | Channels | Memory depth | Rise time | Price |
|---|---|---|---|---|---|
| SDS802X HD | 70 MHz | 2 | 50 Mpts (single channel)25 Mpts (dual channel) | 5 ns | |
| SDS804X HD | 70 MHz | 4 | 50 Mpts (single channel)25 Mpts (dual channel)10 Mpts (all channels active) | 5 ns | |
| SDS812X HD | 100 MHz | 2 | 50 Mpts (single channel)25 Mpts (dual channel) | 3.5 ns | |
| SDS814X HD | 100 MHz | 4 | 50 Mpts (single channel)25 Mpts (dual channel)10 Mpts (all channels active) | 3.5 ns | |
| SDS822X HD | 200 MHz | 2 | 100 Mpts (divided by number of active channels) | 1.8 ns | |
| SDS824X HD | 200 MHz | 4 | 100 Mpts (divided by number of active channels) | 1.8 ns |
Specifications
| Input impedance | 1 MΩ |
| Sample rate | 2 GS/s (divided by number of active channels) |
| Waveform capture rate | 500,000 wfm/s |
| Vertical resolution | 12 bits |
| Vertical scale | 500 µV/div - 10 V/div |
| Horizontal scale | 2 ns/div - 1000 s/div(70/100 MHz models), 1 ns/div - 1000 s/div(200 MHz models) |
| Interfaces | USB Host, USB Device, LAN, Pass/Fail, Trigger Out |
| Decoding | IIC, SPI, UART/RS232, CAN, LIN |
| Display | 7" TFT LCD touchscreen(1024 x 600) |
| Eleshop noise production rating | ★ ★ |
| Dimensions | 312 x 151 x 132.6 mm |
| Weight | 2.6 kg |
Options
These hardware and software options for the SDS800X HD series are available. The waveform/function generator (FG) software option and MSO software (16LA) option are already included with the product by default and don't have to bought separately. In some cases a firmware update might be required.| USB isolated arbitrary waveform/function generator option (hardware) | SAG1021I |
| 16 channel logic analyzer (hardware) | SLA1016 |
| Power analysis deskew fixture (hardware) | DF2001A |
| Power analysis option (software) | SDS800XHD-PA |
Accessories
The Siglent SDS824X HD comes with the following accessories:
- 4x PP215 probe
- Power cord
- 1x USB cable
Pros and cons
- 12-bit resolution
- High sample rate and memory depth
- Optional function generator & other options
- CAN & LIN decoding
- Bode plots
Downloads
| SDS800X HD series datasheet |  (2.09 MB) | Download |
| SDS800X HD series user manual | (13.39 MB) | Download |
| SDS800X HD series programming guide | (9.41 MB) | Download |
