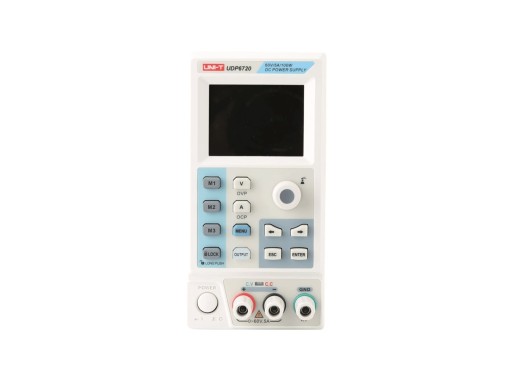

UNI-T UDP6720 power supply
Details
The UNI-T UDP6720 is a single channel 60V, 5A, 100W power supply, featuring a resolution of 10mV/1mA with a maximum of 600 memory presets, making it quite accurate with a large output range. The full color 2.8" TFT LCD display is able to show users a large number of values without need for repeated reading and recording, while also providing interaction with many adjustable parameters.
It features a RS232 serial interface, remote compensation terminals and supports SCPI protocol communication. The overvoltage, overcurrent and overtemperature protection functions guarantee high reliability. Furthermore, the integrated programmable list and delayer functions (with 48 sets of editable points) enable various automatic operations.
The default 3-year warranty can be extended to 5 years by registering your instrument.
Models
The models differ in total power, voltage range and current range.
| Model | UDP6720 | UDP6721 | UDP6730 | UDP6731 |
|---|---|---|---|---|
| Total power | 100 W | 180 W | 360 W | 360 W |
| Voltage range | 0～60 V | 0～60 V | 0～40 V | 0～80 V |
| Current range | 5 A | 8 A | 30 A | 15 A |
| Price |
Specifications
| Outputs | 1 channel |
| Output switch | Yes |
| Resolution | 10 mV / 1 mA |
| Ripple | <2.0 mV RMS / <5.0 mA RMS |
| Protection | OVP, OCP, OTP |
| Interfaces | RS232 serial interface, remote compensation (SCPI protocol) |
| Display | 2.8" full color TFT LCD |
| Dimensions | 87 x 174 x 255 mm |
| Weight | 2.5 kg |
Accessories
The UNI-T UDP6720 comes delivered with:
- Power cord
Pros and cons
- Supports SCPI protocol
- Remote control & compensation
- Compact design
- Low maximum power output
- Single channel
Downloads
| UNI-T UDP67xx Datasheet |  (24.15 MB) | Download |
| Uni-T UDP6720&6721 Manual | (1.66 MB) | Download |
