UNI-T MSO1154HD oscilloscope
Details

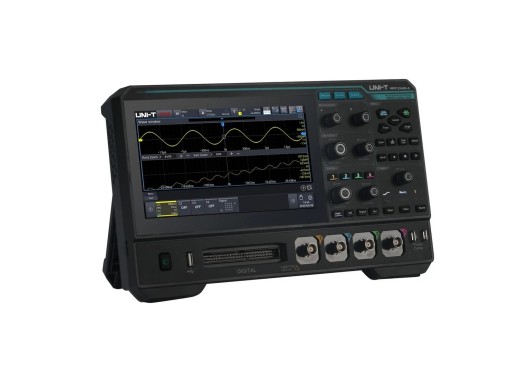

Note: The pictures show the MSO1254HD-S, however the models are visually comparable.
The UNI-T MSO1154HD is the 150MHz entry in the UNI-T MSO1000HD, 12-bit, 4-channel oscilloscope series. This series of scopes features a maximum sampling rate of 2.5GSa/s, a memory depth of 100Mpts per channel, and uses digital filtering to increase the effective resolution up to 16 bits in the Enhanced Resolution mode. Furthermore, the MSO1000HD comes with integrated tools for automotive serial bus decoding, including specialised audio protocols, which are typically optional upgrades on similarly priced oscilloscopes. There is also a spectrum analyser mode with a waterfall display for frequency analysis and a dedicated power analysis suite for advanced measuring work in power electronics. Furthermore, for data logging and signal characterisation, there are automatic statistics and trend graphs directly on the screen for easy analysis.
The MSO1000HD series can also be expanded with the 16-channel logic analyser probe, which also provides the digital analysis option. If the integrated 7" (1024x600) LCD is insufficient, the HDMI output allows for seamless display on a larger monitor. External control is also possible, with options to manage the scope via LAN/USB or through a built-in web server.
The default 3-year warranty can be extended to 5 years by registering your instrument.
Model overview
| Model | MSO1154HD | MSO1154HD-S | MSO1254HD | MSO1254HD-S |
|---|---|---|---|---|
| Bandwidth | 150 MHz | 150 MHz | 250 MHz | 250 MHz |
| Rise time | ≤ 2.2 ns | ≤ 2.2 ns | ≤ 1.4 ns | ≤ 1.4 ns |
| Function generator | No |
Yes |
No |
Yes |
| Price |
Specifications
| Channels | 4 |
| Memory depth | 100 Mpts |
| Sample rate | 2.5 GS/s (divided by number of active channels) |
| Waveform capture rate | 200,000 wfm/s |
| Vertical resolution | 12 bits |
| Vertical scale | 500 µV/div - 10 V/div |
| Horizontal scale | 2 ns/div - 1000 s/div |
| Interfaces | USB Host, USB Device, LAN, Pass/Fail, Gen Out, HDMI |
| Decoding | I2C, SPI, UART/RS232, CAN, CAN-FD, LIN, RS-485/422, Audio |
| Display | 7" LCD touchscreen (1024x600) |
| Dimensions | 282 x 175 x 49 mm |
| Weight | 1.56 kg |
Accessories
The MSO1154HD comes with:
- 1x Power adapter
- 1x USB cable
- 4x UT-P05 passive probe
Pros and cons
- Power analysis tools
- Audio decoding
- 2.5 GSa/s sampling rate
- 100 Mpts per channel memory depth
Downloads
| UNI-T MSO1000HD Datasheet |  (5.09 MB) | Download |
| UNI-T MSO1000HD Programming manual | (2.53 MB) | Download |
| UNI-T MSO1000HD User manual | (14.19 MB) | Download |
