TS101 soldering iron kit
Details
This ESD-safe TS101 soldering iron with an active tip is the successor of the well-known TS100. This is a USB/DC5525 powered soldering iron, which has a maximum power output of no less than 90W! This allows the TS101 to reach a temperature of 400 °C within 9s. In addition, the soldering iron is equipped with a very slim handle and an OLED screen. The iron can be powered with 9 - 24 V via the built-in DC5525 connector and 9 - 28 V via USB-C. Both connections allow for flexibility in power selection as the TS101 can be powered via a socket or through a battery.
This kit comes with 3 common tips, a conical tip (TS-B2), a bevel tip (TS-BC2), and a knife tip (TS-K). The included pouch lets you organise and safely store your soldering iron for compact storage and travel. There is even space leftover for additional accessories such as a small power adaptor or additional tips, which can be purchased here.
A DC5525 power adaptor is not included but can be purchased seperately with a 72W or 96W power rating.
Specifications
| Power | 90 W |
| Temperature range | 50 °C - 40 °C |
| Fastest heating time | ~ 9 sec |
| Tip system | Active |
| ESD safe | Yes |
| Tip to ground resistance | < 2 Ω |
| Temperature stability | ± 3 % |
| Automatic standby | Yes, 1 min minimum time |
| Connectivity | DC5525, 9 - 24 V USB-C, 9 - 28 V |
| Dimensions | 168 x 16.5 mm |
| Weight | 303 g |

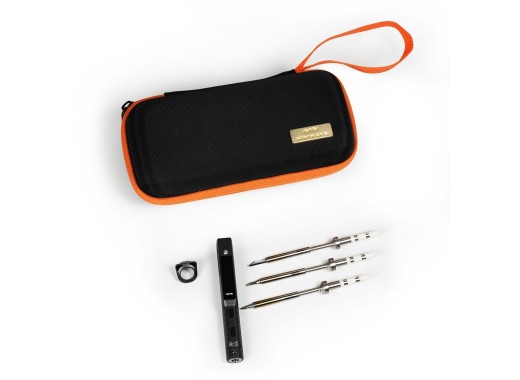

Accessories
The TS101 Kit comes with:
- TS-B2 tip
- TS-BC2 tip
- TS-K tip
- USB-C silicone cable
- Carrying pouch
Pros and cons
- Bundle is cheaper than when purchasing the items separately.
