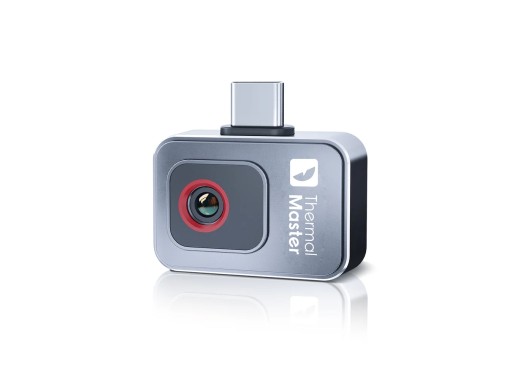

Thermal Master P2 thermal camera for Android
Promotion! Apply this discount code in the shopping cart to get 10% discount: TM10
Details
The Thermal Master P2 for Android is an easy-to-use portable thermal camera, which turns any Android smartphone with USB-C into a thermal imaging camera. The P2 has a measurable temperature range from -20℃ to 600℃, an IR resolution of 256x192 pixels (can be upscaled to 512x384), and a framerate of 25Hz. The thermal camera also features a 15x zoom function, with 1.5℃ PCB accuracy. With various functionalities such as colour palettes, target highlighting and analysis methods, the P2 fits many application cases. Because of the camera's small form factor, power over USB-C and light weight of only 9.7 grams, it is ideal to use on-site without having to use any external devices other than a phone, tablet or computer with the Thermal Master connected.
Please note: this version is only usable with Android devices, using the P2 with iOS devices using a USB-C port will not work.
One possible downside of this model is the lack of a macro lens, which is not available. Therefore, it might be wise to consider the pro model: the P2 Pro. For the P2 pro, an optional macro less is available, as well as support for IOS.
Model overview
| P1 (Android / iOS ) | P2 (Android ) | P2 Pro (Android / iOS ) | P3 (Android / iOS ) | P4 (Android ) | |
|---|---|---|---|---|---|
| IR resolution | 160 x 120 | 256 x 192 | 256 x 192 | 256 x 192 | 256 x 192 |
| Upscaled resolution | 320 x 240 | 512 x 284 | 512 x 384 | 512 x 384 | 512 x 384 |
| NETD | <40 mK | <40 mK | <40 mK | ≤35 mK | ≤35 mK |
| FOV | 52° x 39° | 56° x 42.2° | 56° x 42.2° | 40° x 30.2° | 56° x 42.2° |
| Price |
Specifications
| Temperature range | -20 to 600 ℃ |
| Accuracy | ±1.5 ℃ |
| Frame rate | 25 Hz |
| Display | External |
| Colour palettes | White/black-hot, iron red, red hot and 8 other palettes |
| Connection | USB-C |
| Dimensions | 27 x 18 x 9.8 mm |
| Weight | 9.7 g |
Accessories
The Thermal Master P2 thermal imaging camera for Android comes with:
- 1x Type-C female-to-male extension USB cable
- 1x Small carry-on case
Pros and cons
- Compact form factor
- No macro lens available
