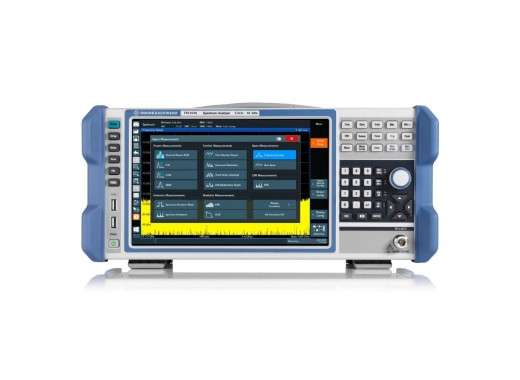

Rohde & Schwarz FPL1014 spectrum analyser
Details
The Rohde & Schwarz FPL1014 is part of the FPL1000 series of spectrum analysers. The frequency range of the FPL1014 is 5kHz to 14GHz. It features a large 10.1" touchscreen, providing a clear signal image. The touchscreen comes with simple and intuitive gesture controls. The device comes with a handle for ease of transport and an optional battery pack is available for the spectrum analyser. Finally, the FPL1014 can be connected to a PC via USB. We also offer the FPL1014-P1 bundle containing this spectrum analyser.
Model overview
| Model | FPL1003 | FPL1007 | FPL1014 | FPL1026 | FPL1044 |
|---|---|---|---|---|---|
| Frequency range | 5 kHz - 3 GHz | 5 kHz - 7.5 GHz | 5 kHz - 14 GHz | 5 kHz - 26.5 GHz | 10 Hz - 44 GHz |
| Price |
Specifications
| Frequency resolution | 0.01 Hz |
| RBW | 1 Hz - 10 MHz |
| DANL | < -163 dBm/Hz |
| Amplitude accuracy | < 0.3 dB (nom.) |
| Phase noise | < -108 dBc |
| Tracking generator | No |
| Interfaces | N female, USB host/device, LAN, RJ-45 |
| Display | 10.1" TFT LCD (1280x800) |
| Dimensions | 408 x 186 x 235 mm |
| Weight | 7 kg |
Accessories
- Power cord
Downloads
| FPL1000 series data sheet |  (1.85 MB) | Download |
| FPL1000 series user manual | (35.29 MB) | Download |
