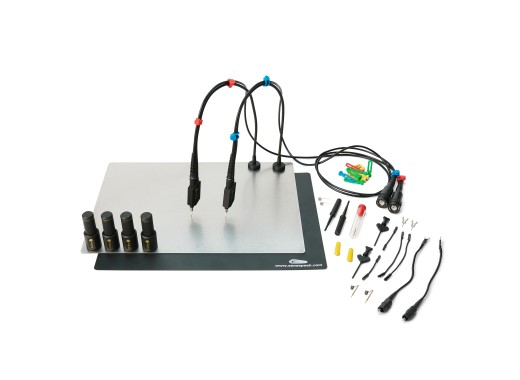

Sensepeek 6016 PCBite kit with 2x SQ200 200 MHz handsfree oscilloscope probes
Details
This Sensepeek 6016 PCBite kit includes two handsfree SQ200 200 MHz oscilloscope probes which can be used for handsfree measurements as well as handheld measurements. The magnetic bottoms of these handsfree probes are used to easily find the optimum spot to place the probes.
Moreover, the PCBite kit comes with a Sensepeek 4017 PCBite insulation cover which can be used as an extra protection when working with powered PCBs.
Specifications
The specifications for the SQ200 probes are listed in the table below.
| 3 dB bandwidth | DC to 200 MHz |
| Attenuation | 10:1 |
| Resistance at probe tip | 10 MΩ |
| Capacitance at probe tip | 13.9 pF |
| Scope input impedance | 1 MΩ |
| Maximum working voltage | 150 V RMS |
| Temperature range | -20 °C - +50 °C |
| Probe tip diameter | 0.5 mm |
| Weight | 40 g |
Accessories
The Sensepeek 6016 PCBite kit comes by default with:
- 2x SQ200 - 200 MHz handsfree oscilloscope probes (Sensepeek 6014)
- 4x PCBite PCB holders
- 1x A4 insulation cover for the base plate (Sensepeek 4017)
- 1x set of yellow insulation washers for the PCB holders
- 1x large base plate (A4)
- 1x micro fiber cloth
Pros and cons
- Easy handsfree measuring
Downloads
| SQ series manual |  (1.51 MB) | Download |
