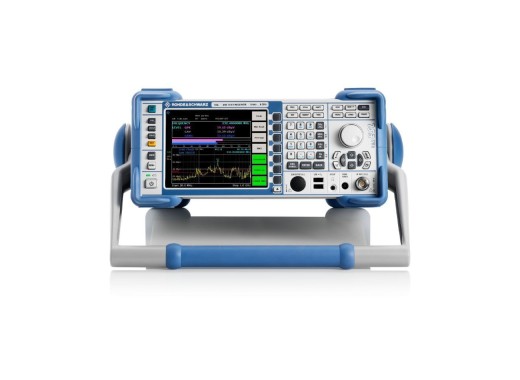

Rohde & Schwarz ESL6-TG EMI test receiver with tracking generator
Details
The Rohde & Schwarz ESL6-TG EMI test receiver measures EMC disturbances and functions as a full-featured spectrum analyser for laboratory applications. The EMI receiver comes with all major functions expected in a modern EMI test receiver such as max./min. peak, average, RMS, quasi-peak as well as average with meter time constant, rms-average. The device complies with the latest version of CISPR 16-1-1 and fully automated test sequences. With a bandwidth from 9kHz to 6GHz, the ESL6-TG covers almost all commercial EMC standards. This model also features a tracking generator. Furthermore, the ESL has an intuitive operation and clear easy-to-use settings.
Model overview
| Model | Bandwidth | Tracking generator | Price |
| ESL3 | 9 kHz - 3 GHz | No | |
| ESL3-TG | 9 kHz - 3 GHz | Yes | |
| ESL6 | 9 kHz - 6 GHz | No | |
| ESL6-TG | 9 kHz - 6 GHz | Yes |
Specifications
| Resolution | 1 Hz |
| RBW | 10 Hz - 1 kHz |
| DANL | < - 140 dBm/Hz |
| Amplitude accuracy | < 0.5 dB |
| RF input | 50 Ω |
| Connector | N female |
| Interfaces | LAN, USB |
| Display | 640x480 pixels |
| Dimensions | 408.8 mm x 158.1 mm x 465.3 mm |
| Weight | 7 kg |
Accessories
The ESL6-TG comes by default with:
- Power cord
Pros and cons
- CISPR 16-1-1 compliant
Downloads
| ESL EMI datasheet |  (918.25 KB) | Download |
| ESL user manual | (5.24 MB) | Download |
