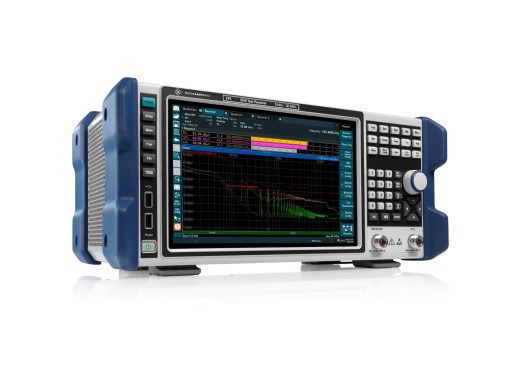

Rohde & Schwarz EPL1000 EMI test receiver
Details
What sets the Rohde & Schwarz EPL1000 EMI test receiver apart from other test receivers is its measurement speed. Measurements of a single CISPR band can be performed in a single shot, making the EPL1000 much faster than a spectrum analyser. The entire measurement range of the EPL1000 spans 5kHz to 30MHz, and measurements are compliant with CISPR 16-1-1. Additionally, the EPL1000 supports the decadic 6 dB bandwidths required by MIL-STD-461 and DO-160. Measurements are simplified by automation; the EPL 1000 automates its signal level adaptations, measurement result evaluation and report generation. Signal analysis is also possible, as the EPL1000 also offers a spectrogram function. Typical application areas are precompliance measurements, precertification and certification in line with IEC, EN, CISPR and FCC. In case you would like to expand the functionality of the EPL1000, please feel free to contact us regarding the many options.
Specifications
| Frequency | |||
| Bandwidth | 5 kHz - 30 MHz | ||
| Resolution | 0.01 Hz | ||
| RBW | 200 Hz - 1 MHz | ||
| Measurements | |||
| DANL | -156 dBm/Hz | ||
| Scan time Quasi-Peak and CISPR average | |||
| Measurement time | 1 s | 15 s | |
| Total time | ≤3 s | ≤17 s | |
| Scan time Quasi-Peak and CISPR average | |||
| Measurement time | 100 ms | 1 s | 15 s |
| Total time | ≤500 ms | ≤1.4 s | ≤15.4 s |
| Other specifications | |||
| Tracking generator | optional | ||
| RF input | 50 Ω | ||
| Connector | N female | ||
| Interfaces | 4x USB, LAN, DisplayPort 1.3, User Port | ||
| Display | 10.1" TFT LCD (1280x800) | ||
| Size | 408 mm x 186 mm x 235 mm | ||
| Weight | 6.9 kg |
Accessories
The EPL1000 comes by default with:
- Power cord
Pros and cons
- Much faster measurements compared to spectrum analysers
- CISPR 16-1-1 compliant
Downloads
| R&S EPL1000 getting started |  (7.74 MB) | Download |
| R&S EPL1000 manual | (17.01 MB) | Download |
| R&S EPL1000 specifications | (1.25 MB) | Download |
| R&S EPL1000 brochure | (5.38 MB) | Download |
