Harogic PXN-90 spectrum analyser
Details

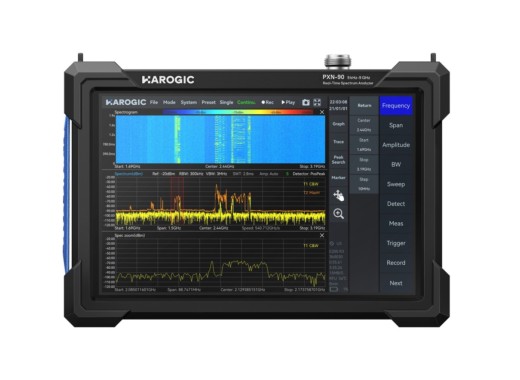

The Harogic PXN-90 is a real-time handheld spectrum analyser covering 9kHz to 9GHz. It uses a superheterodyne receiver with a full-band preamplifier and up to 14 preselector filters, delivering 50MHz (or optionally 100 MHz) of real-time analysis bandwidth, a sweep speed up to 1THz/s, a -110dBc/Hz phase noise at 10kHz offset and a -168dBm/Hz DANL.
The PXN series stands out for its open platform. It runs Raspberry Pi OS on a Raspberry Pi CM5, so alongside the bundled SAStudio4 software it is possible to install or develop applications using the well-documented SDK and API. SCPI remote control is supported for automated test setups.
Where most brands sell the measurement suite as a set of paid options, the PXN series includes it as standard. SAStudio4 covers swept and gapless real-time spectrum analysis, IQ streaming with DDC, power detection to 16ns resolution, phase noise measurement from 1Hz to 10MHz offset and harmonic analysis to the tenth harmonic.
Model overview
| Model | Bandwidth | Tracking generator | OCXO reference | Price |
|---|---|---|---|---|
| PXN-45 | 9 kHz - 4.5 GHz | No |
No |
|
| PXN-45-TG | 9 kHz - 4.5 GHz | Yes |
No |
|
| PXN-45-TG-OCXO | 9 kHz - 4.5 GHz | Yes |
Yes |
|
| PXN-60 | 9 kHz - 6 GHz | No |
No |
|
| PXN-60-TG | 9 kHz - 6 GHz | Yes |
No |
|
| PXN-60-TG-OCXO | 9 kHz - 6 GHz | Yes |
Yes |
|
| PXN-90 | 9 kHz - 9 GHz | No |
No |
|
| PXN-90-TG | 9 kHz - 9 GHz | Yes |
No |
|
| PXN-90-TG-OCXO | 9 kHz - 9 GHz | Yes |
Yes |
Software options
| Spectogram, IQ streaming | Standard |
| AM/FM demodulation | Standard |
| Advanced measurements (channel power, OBW, ACPR, IM3, SEM, ...) | Standard |
| Phase noise measurements | Standard |
| Harmonics | Standard |
| Data record, playback, peak table | Standard |
| SCPI, remote control, API, SDK | Standard |
| Real time bandwidth | 50 MHz / 100MHz upgrade |
| Digital demodulation (CW ASK 2FSK 4FSK BPSK QPSK 8PSK 16QAM 64QAM ...) | Option |
| Pulse signal measurement | Option |
| EMI (coming soon) | Option |
Specifications
| RBW | 0.1 Hz - 10 MHz |
| DANL | -168 dBm/Hz (typ. at 1 GHz) |
| Amplitude accuracy | ±1.0 dB |
| Phase noise | -110 dBc/Hz at 10 kHz offset (1 GHz) |
| Tracking generator | No |
| Interfaces | USB 3.0/2.0 Type-C, USB Type-A, LAN (RJ45 1 Gbps), Micro HDMI, GNSS |
| Display | 10.1-inch multitouch (1280x800) |
| Battery life | 2.5 hours (typical), external power bank supported |
| Dimensions | 260 x 185 x 46 mm |
| Weight | 1.5 kg |
Accessories
The Harogic PXN-90 comes with the following accessories:
- Lanyard
- USB PD power adapter (65W)
- Power cord
Pros and cons
- Run and develop your own apps on its open Linux platform
- 50 MHz real-time bandwidth for gap-free wideband capture
- OCXO, tracking generator, 100 MHz bandwidth and modes are sold separately
