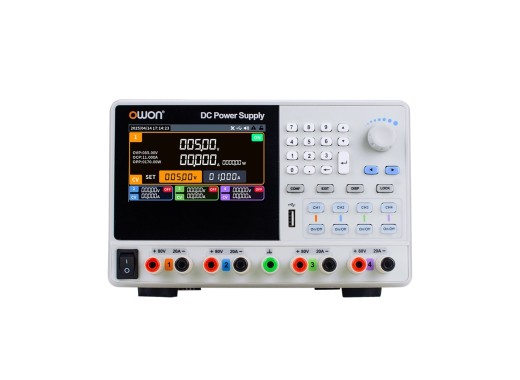

Owon OWH8080Q-2000 DC power supply
Details
The Owon OWH8080Q-2000 is a high-performance switch-mode DC power supply designed for demanding multi-channel applications requiring precision and flexibility. This 4-channel model delivers up to 2000W total output, with each channel capable of up to 80V and 20A. With a resolution of 10mV/1mA and an accuracy of up to 0.05%, it ensures reliable and precise control across all channels. The intuitive user interface features a clear display with waveform visualisation, allowing easy monitoring of output behaviour. The power supply also has a good, long-term data logging and screenshot feature, allowing for monitoring up to 72 hours. The OWH80Q series comes in a ½ 3U rack cabinet size, making it suitable for installation in standard 19-inch racks. Finally, the OWH80Q series also supports multiple communication interfaces such as LAN, RS485, and RS-232, as well as its own free software for remote control.
Finally, power supplies in the OWH80Q series can be connected in parallel, meaning the total current of the system can be increased. Please contact us for more information.
Model overview
| Models | OWH8080Q-2000 | OWH8040Q-600F | OWH8020Q-1000F |
|---|---|---|---|
| Total power | 2000 W | 600 W | 1000 W |
| Current range | 0 - 20 A | 0 - 10 A | 0 - 5 A |
| Ripple | ≤ 50 mV / ≤ 30 mA | ≤ 100 mV / ≤ 100 mA | ≤ 100 mV / ≤ 120 mA |
| Fanless | No | Yes | Yes |
| Price |
Specifications
| Outputs | 4 |
| Output switch | Each channel |
| Voltage range | 0 - 80 V |
| Resolution | 10 mV / 1 mA |
| Protection | OPP, OCP, OVP |
| Interfaces | USB, LAN, RS485, RS232 |
| Display | 4.3" TFT |
| Dimensions | 215 x 133 x 446 mm |
| Weight | 6 kg |
Accessories
The OWH8080Q-2000 comes by default with:
- Power cord
- USB cable
Pros and cons
- 4 channels
- Precise resolution
- High accuracy
Downloads
| OWH80Q series datasheet |  (2.18 MB) | Download |
| Owon OWH80Q series user manual | (1.99 MB) | Download |
| OWH80Q power supply PC software |  (35.17 MB) | Download |
