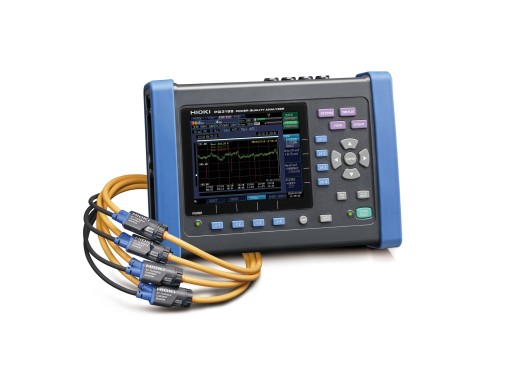

Hioki PQ3198-94 power quality analyser kit
Details
The Hioki PQ3198-94 power quality analyser kit includes the PQ3198 with all needed accessories, allowing measurements up to 6000A. It is ideal for performing power inspections and diagnosing disturbances in high-power electrical systems using the four isolated channels. Additionally, this device is a high-quality 3-phase power logger, meaning it is able to monitor, measure, and record current phases simultaneously. The PQ3198 can record voltage dips, unbalance, and harmonics, making this an all-in-one solution for monitoring and analysing power quality. Because of all these features, this analyser can be used for power quality audits.
With long-term recording capabilities using an SD card, the PQ3198 is able to store information for months. This power quality analyser supports both AC and DC voltage in compliance with IEC61000-4-30 Class A. Due to its size, the power quality analyser is easily portable, making it the perfect device for professionals on the job site.
Specifications
| Voltage Inputs | |
| Measurement Category | 600 V CAT IV / 1000 V CAT III |
| Measuring Channels | 4 voltage channels |
| Measurement Range | 1 V to 1000 V AC/DC (±6000 V peak) |
| Basic Accuracy | ±0.1 % of reading |
| Frequency Range | DC, 0.1 Hz to 700 kHz |
| Maximum Input Voltage | 1000 V rms / 1000 V DC |
| Voltage Transients | |
|---|---|
| Event Detection | Transients, voltage increases, voltage drops, interruptions, frequency fluctuations |
| Standard Compliance | IEC 61000-4-30 Class A |
| Current Inputs | |
| Number of Inputs | 4 current channels |
| Current Measuring Range | Up to 6000 A AC (with CT7045 flexible current sensors) |
| Sensor Measuring Range | 600 A / 6000 A AC |
| Bandwidth | 10 Hz to 50 kHz (±3 dB) |
| Accuracy | ±1.5 % F.S. ±0.25 % F.S. (CT7045 sensor) |
| Maximum Rated Voltage to Earth | 600 V CAT IV / 1000 V CAT III |
| Loop Diameter | 180 mm |
| Data Storage | SD memory card storage (internal memory supported) |
| Display | 6.5-inch TFT colour display |
| Power Supply | AC adapter Z1002, battery packs Z1003 (up to 3 hours operation) |
| Dimensions | 264 × 150 × 68 mm |
| Weight | 2.6 kg |
Accessories
The PQ3198-94 comes with:
- 1x 3AC Adapter Z1002
- 1x Battery Pack Z1003
- 1x USB Cable
- 1x Colour clips
- 1x Spiral tubes
- 1x Carrying Case C1009
- 1x Voltage cords L1000
- 4x Flexible Current Sensors CT7045
- 1x SD Memory Card Z4001
- 3x Patch Cords L1021-02r
- 1x PQ ONE Software CD
