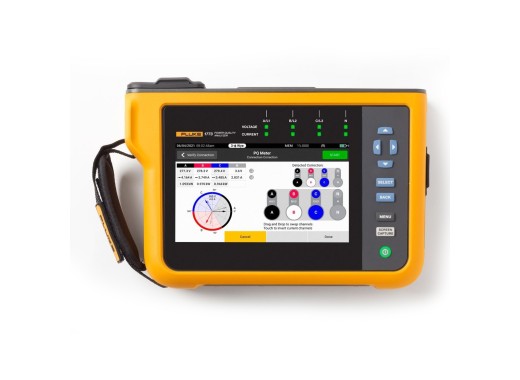

Fluke-1773 power analyser
Details
The Fluke-1773 power analyser is part of the Fluke 1770 series of power analysers. The Fluke-1773 eliminates the complexities of power quality logging, troubleshooting, and analysis with superb user-friendly software and feature set. The Fluke-1773 is built to be accurate and reliable to ensure you can characterise your electrical system right every time by being able to catch fast transients up to 8 kV, harmonics up to 30 kHz, dips and swells, as well as the voltage, current, and other power measurements. This power analyser includes excellent features such as automatic measurement capture, powerful analysis software with easy-to-create highly customised reports, one-touch standardised report creation conforming to international standards such as EN 50160, IEEE 519 or export in PQDIF, NEQual or CSV for use with third-party software, best-in-class specifications and a simplified user interface. All in a portable handheld package.
Specifications
| Measurement Category | 1000 V CAT III/600 V CAT IV |
| Maximum Input Voltage | 1000 V rms/1000 V DC (1700 Vpk) |
| Bandwidth | DC to 30 kHz for PQ measurements, excluding transients |
| Resolution | 24-bit synchronous sampling |
| Measurement Range | ±8 kV |
| Bandwidth | DC to 1 MHz |
| Trigger | Adjustable trigger level Triggers on high-frequency components >1.5 kHz |
| Resolution | 14-bit synchronous sampling |
| Bandwidth | DC to 30 kHz |
| Resolution | 24-bit synchronous sampling |
| Sampling Frequency | 80 kS/second at 50/60 Hz |
| Scaling | 1:1 variable |
| Input Voltage | Clamp: 50 mV/500 mV rms; CF 2.8 Rogowski coil: 15 mV/150 mV rms at 50 Hz, 18 mV/180 mV rms at 60 Hz; CF 4 All at nominal probe range |
| Input Impedance | 11 kΩ |
| Number of Inputs | 4 |
| Input Mains Frequency | DC, 50/60 Hz ±15% (42.5 to 57.5 Hz, 51 to 69 Hz) |
| Data Storage | 8 GB internal |
| Memory Size | Typical 10 logging sessions of 8 weeks with 1-minute intervals and 100 events The number of possible logging sessions and logging period depends on user requirements |
| Real-time Accuracy | Internal: 3 ppm (0.26 seconds per day, 8 seconds per month) NTP (internet time): depending on internet latency, typical <0.1 seconds absolute to UTC GPS: <1 ms absolute to UTC |
| Dimensions | 280 x 190 x 62 mm |
| Weight | 2.1 kg |
Accessories
The Fluke-1773 comes with:
- 1 x 3PHVL-17XX flat cable voltage test lead 3-phase+N
- 4 x AC285 black alligator clips
- 1 x AC285 green alligator clip
- 1 x Black 1M USB-C cable
- 1 x Line cords
- 1 x FLUKE-17XX-TL blue stacking 0.18M test lead
- 1 x Green test lead
- 1 x 17XX CABLE MARKER cable marker set
- 1 x 17XX BATT W/HOUSING battery (installed)
- 1 x MA-C8 wall outlet adapter
- 4 x I17XX-FLEX1500/24 flexible 1500A AC current clamps
Downloads
| Fluke-1773 datasheet |  (1.45 MB) | Download |
