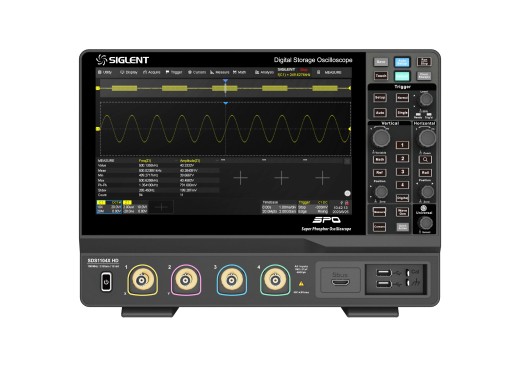

Siglent SDS1104X HD oscilloscope
Details
The Siglent SDS1104X HD is a 4-channel oscilloscope and the 100MHz version in the SDS1000X HD series. The SDS1000X HD series has a 12-bit resolution to reduce quantization uncertainty and in turn, improve signal fidelity and analysis capabilities. This oscilloscope also features a 100Mpts single channel memory depth as well as a 2GS/s sample rate. Furthermore, the oscilloscopes from this series have a 10.1" touchscreen display with a resolution of 1024 x 600 pixels and a high capture rate of 500,000 waveforms per second. Also included are 256-Level intensity grading and color temperature display modes. The SDS1000X HD series includes bode plot analysis, mask testing and optional power analysis.
A large number of frames with data can be stored for further analysis. In addition, the SDS1000X HD series oscilloscopes have an ultra-low noise floor, making measurements on very small signals possible and resulting in cleaner signals. Moreover, multiple interface options are included as there is a USB host/device connection in addition to: LAN, Pass/Fail and trigger out. Remote control via a web browser is also possible due to the built-in web server.
Siglent offers a wide range of software options for their products, often adding a lot of functionalities. For all information about the available options, please refer to the user manual at the bottom of this page.
Model overview
| Model | Bandwidth | Channels | Rise time | Price |
|---|---|---|---|---|
| SDS1102X HD | 100 MHz | 2 | 3.5 ns | |
| SDS1104X HD | 100 MHz | 4 | 3.5 ns | |
| SDS1202X HD | 200 MHz | 2 | 1.8 ns | |
| SDS1204X HD | 200 MHz | 4 | 1.8 ns |
Specifications
| Memory depth | 100 Mpts (divided by number of active channels) |
| Sample rate | 2 GS/s (divided by number of active channels) |
| Waveform capture rate | 500,000 wfm/s |
| Vertical resolution | 12 bits |
| Vertical scale | 500 µV/div - 10 V/div |
| Horizontal scale | 1 ns/div - 1000 s/div |
| Interfaces | USB Host, USB Device, LAN, Pass/Fail, Trigger Out |
| Decoding | IIC, SPI, UART/RS232, CAN, LIN, CAN FD, FlexRay |
| Display | 10.1" TFT LCD touchscreen(1024 x 600) |
| Eleshop noise production rating | ★ ★ ★ ★ ★ |
| Dimensions | 317.2 x 236.0 x 149.0 mm |
| Weight | 4.1 kg |
Options
These hardware and software options for the SDS1000X HD series are available. The AWG function generator (FG) and MSO software (16LA) options are already included with the product and don't have to bought separately. In some cases a firmware update might be required.| USB isolated arbitrary waveform/function generator option (hardware) | SAG1021I |
| 16 channel logic analyzer (hardware) | SLA1016 |
| Power analysis deskew fixture (hardware) | DF2001A |
| Power analysis option (software) | SDS1000XHD-PA |
Accessories
The Siglent SDS1104X HD comes with the following accessories:
- 4x PP510 probe
- Power cord
- 1x USB cable
Pros and cons
- 12-bit resolution
- High sample rate and memory depth
- Optional function generator & other options
- CAN & LIN decoding
- Bode plots
Downloads
| SDS1000X HD series datasheet |  (1.65 MB) | Download |
| SDS1000X HD series user manual | (12.34 MB) | Download |
| SDS800X HD series programming guide | (9.41 MB) | Download |
