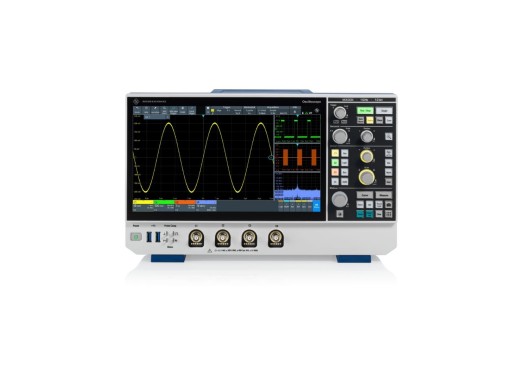

Rohde & Schwarz MXO34-100 oscilloscope
Promotion! With the purchase of a Rohde & Schwarz MXO3 series oscilloscope you can buy the MXO3-PK1 bundle with a 50% discount! The discount is automatically applied in the shopping cart. Offer valid while stocks last! EDU orders are excluded from this promotion.
Details
The MXO34-100 is the 100MHz version of the MXO3 series oscilloscopes. This series of oscilloscopes features an extremely high waveform capture rate of 4.5 million wfs/s. This, combined with the 12-bit ADC (18-bit in HD mode), ensures that many small infrequent events can be observed. Furthermore, this series features a 125Mpts memory depth, which allows recording for long periods of time. Moreover, these oscilloscopes also feature an FFT function with a spectrum acquisition rate of 50000FFT/s and a highly sensitive trigger function with low trigger jitter.
The MXO34-100 features an 11.6" full HD capacitive touchscreen display with an intuitive user interface that includes, for example, a function search menu and remote control access over LAN. Finally, we offer a wide range of bandwidths (100MHz up to 1GHz) as an optional upgrade, please contact us for more information.
Model overview
| Model | Channels | Bandwidth | Price |
|---|---|---|---|
| MXO34-100 | 4 | 100 MHz | |
| MXO34-200 | 4 | 200 MHz | |
| MXO34-350 | 4 | 350 MHz | |
| MXO34-500 | 4 | 500 MHz | |
| MXO34-1000 | 4 | 1 GHz | |
| MXO38-100 | 8 | 100 MHz | |
| MXO38-200 | 8 | 200 MHz | |
| MXO38-350 | 8 | 350 MHz | |
| MXO38-500 | 8 | 500 MHz | |
| MXO38-1000 | 8 | 1 GHz |
Specifications
| Memory depth | 125 Mpts (per channel) |
| Sample rate | 5 GSa/s (on 2 channels, 2.5 GSa/s on 4 channels) |
| Waveform capture rate | 4,500,000 wfm/s |
| Vertical resolution | 12 bits (18 bits in HD mode) |
| Vertical scale | 0.5 mV/div - 1 V/div |
| Horizontal scale | 200 ps/div - 10000 s/div |
| Interfaces | USB Host, USB Device, LAN, HDMI |
| Display | 11.6" TFT LCD (1920x1080 touchscreen) |
| Dimensions | 375 × 233 × 163 |
| Weight | 4 kg |
Options
The table below shows a list of all possible options for the MXO34 series oscilloscopes. Please contact us, if you consider adding an option to your order.
| Upgrade of MXO 34 to 200 MHz bandwidth | MXO3-B242 |
| Upgrade of MXO 34 to 350 MHz bandwidth | MXO3-B243 |
| Upgrade of MXO 34 to 500 MHz bandwidth | MXO3-B245 |
| Upgrade of MXO 34 to 1 GHz bandwidth | MXO3-B2410 |
| Mixed signal option for MXO 3 series with 16 digital channels | MXO3-B1 |
| Function generator, 50 MHz, 1 analog channel | MXO3-B6 |
| Memory upgrade to 500 Mpoints | MXO3-B105 |
| Power analysis | MXO3-K31 |
| Frequency response analysis | MXO3-K36 |
| Low speed serial triggering and decoding | MXO3-K510 |
| Automotive serial triggering and decoding | MXO3-K520 |
| Aerospace protocols | MXO3-K530 |
| MIPI low speed protocols decoding | MXO3-K550 |
| Automotive Ethernet protocols decoding | MXO3-K560 |
| Bundle, consists of the following options: MXO3-B6, MXO3-B105, MXO3-K31, MXO3-K36, MXO3-K510, MXO3-K520, MXO3-K530, MXO3-K550, MXO3-K560 | MXO3-PK1 |
Accessories
The MXO34-100 comes by default with:
- 4x Passive probe
- Power cord
Downloads
| Rohde & Schwarz MXO34/8 datasheet |  (13.72 MB) | Download |
