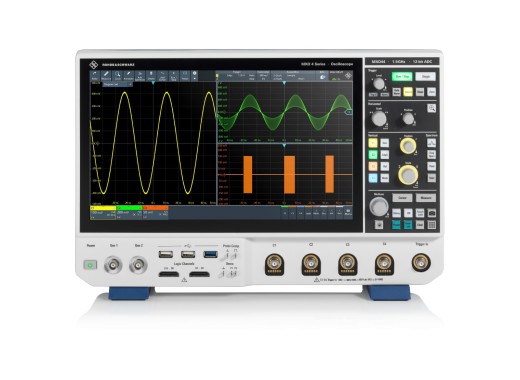

Rohde & Schwarz MXO44-242 oscilloscope
Details
The MXO44-242 is the 200 MHz version of the MXO44 series oscilloscopes. This series of oscilloscopes features an extremely high waveform capture rate of 4.5 million waveforms/s. This combined with the 12-bit ADC (18 bit in HD mode) ensures that many small infrequent events can be observed better than with many other oscilloscopes. Furthermore, this series features a big 400 Mpoints memory depth which allows recording for long periods of time. In addition to this, these oscilloscopes also feature an FFT function with spectrum acquisition rate of 45000 FFT/s and a highly sensitive trigger function with low trigger jitter.
The MXO44 series feature a 13.3" full HD capacitive touchscreen display with a intuitive user interface that contains for example a function search menu and remote control access over LAN. Furthermore, the MXO44 series features a VESA mount with which the oscilloscopes can be mounted.
Bundle overview
MXO4-BNDL has been replaced by the MXO4-Basic, Pro en Ultimate| Model | MXO44-BASC | MXO44-PRO | MXO44-ULTM |
|---|---|---|---|
| Bandwidth | 200 MHz | 500 MHz | 1.5 GHz |
| Rise time | 1.75 ns | 700 ps | 234 ps |
| Extra features | waveform generator | waveform generator, frequency response analyzer, power analysis package, trigger & decoding | waveform generator, frequency response analyzer, power analysis package, trigger & decoding, additional memory, logic probes with MSO option. |
| Price |
Model overview
| Model | MXO44-242 | MXO44-243 | MXO44-245 | MXO44-2410 | MXO44-2415 |
|---|---|---|---|---|---|
| Bandwidth | 200 MHz | 350 MHz | 500 MHz | 1 GHz | 1.5 GHz |
| Rise time | 1.75 ns | 1 ns | 700 ps | 350 ps | 234 ps |
| Price |
Specifications
| Channels | 4 |
| Memory depth | 400 Mpts (per channel) |
| Sample rate | 5 GS/s (on 2 channels, 2.5 GS/s on 4 channels) |
| Waveform capture rate | 4500000 wfm/s |
| Vertical resolution | 12 bits (18 bits in HD mode) |
| Vertical scale | 0.5 mV/div - 1 V/div |
| Horizontal scale | 200 ps/div - 10000 s/div |
| Interfaces | USB Host, USB Device, LAN, HDMI |
| Display | 13.3" TFT LCD (1920x1080, Touch-screen) |
| Dimensions | 414 × 279 × 162 |
| Weight | 6 kg |
Options
| 19" rackmount adapter (hardware) | ZZA-MXO4 | |
| Front cover (hardware) | MXO4-Z1 | |
| Transport case (hardware) | MXO4-Z3 | |
| Transit case with trolley (hardware) | MXO4-Z4 | |
| 16 channels mixed signal (hardware) | MXO4-B1 | |
| 800 Mpoints memory upgrade (software) | MXO4-B108 | |
| 350 MHz bandwidth upgrade (software) | MXO4-B243 | |
| 500 MHz bandwidth upgrade (software) | MXO4-B245 | |
| 1 GHz bandwidth upgrade (software) | MXO4-B2410 | |
| 1.5 GHz bandwidth upgrade (software) | MXO4-B2415 | |
| Function generator (software) | MXO4-B6 | |
| Frequency response analysis (software) | MXO4-K36 | |
| Low speed triggering and decoding (I2C, SPI, UART/RS-232/RS-422/RS-485, Quad-SPI) (software) | MXO4-K510 | |
| Automotive triggering and decoding (CAN, CAN-FD, CAN-XL, LIN) (software) | MXO4-K520 | |
| Aerospace triggering and decoding (ARINC-429, MIL-STD-1553) (software) | MXO4-K530 | |
| Serial triggering and decoding (SPMI) (software) | MXO4-K550 | |
| IEEE triggering and decoding (10BASE-T1S) (software) | MXO4-K560 |
Accessories
The MXO44 series comes by default with:
- 4x passive probe
- Power cord
