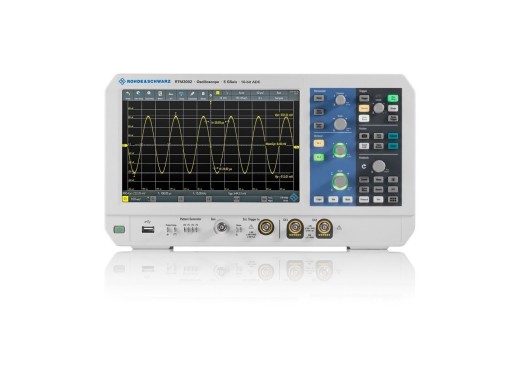

Rohde & Schwarz RTM3002 oscilloscope

4320 €4,320.00 Excl. VAT

Loading stock info

Product number: ELE007619

Lowest price guaranteed

Details

The Rohde & Schwarz RTM3002 is the 2-channel version of the RTM series of oscilloscopes. Furthermore, this series features a bandwidth of 100MHz, a memory depth of 40Mpts and a sample rate of 2.5GS/s, allowing recording over long periods of time. Additionally, this series of oscilloscopes has a high vertical sensitivity and includes several functions such as a logic analyser, protocol analyser, waveform and pattern generator and a digital voltmeter. The combination of high memory depth and sample rate allows this oscilloscope to capture more data over longer periods of time than other oscilloscopes. The RTM3002 features a 10.1" full HD capacitive touchscreen display with an intuitive user interface that includes a function search menu and remote control access via LAN.

Model overview

Model	RTM3002	RTM3004
Channels	2	4
Price	4320 €4,320.00 Excl. VAT	5130 €5,130.00 Excl. VAT

Specifications

Bandwidth	100 MHz
Memory depth	40 Mpts (per channel)
Sample rate	2.5 GS/s (per channel) 5 GS/s (interleaved)
Waveform capture rate	64000 wfm/s
Vertical resolution	10 bits
Vertical scale	0.5 mV/div - 1 V/div
Horizontal scale	0.5 ns/div - 500 s/div
Interfaces	USB Host, USB Device, LAN
Display	10.1" TFT LCD (1280 x 800, touchscreen)
Dimensions	390 × 152× 220 mm
Weight	3.3 kg

Options

Mixed signal upgrade (hardware)	RTM-B1	1860 €1,860.00 Excl. VAT
200 MHz bandwidth upgrade (RTM3002 only) (software)	RTM-B222	845 €845.00 Excl. VAT
350 MHz bandwidth upgrade (RTM3002 only) (software)	RTM-B223	4570 €4,570.00 Excl. VAT
500 MHz bandwidth upgrade (RTM3002 only) (software)	RTM-B224	6950 €6,950.00 Excl. VAT
1 GHz bandwidth upgrade (RTM3002 only) (software)	RTM-B2210	9210 €9,210.00 Excl. VAT
200 MHz bandwidth upgrade (RTM3004 only) (software)	RTM-B242	575 €575.00 Excl. VAT
350 MHz bandwidth upgrade (RTM3004 only) (software)	RTM-B243	5520 €5,520.00 Excl. VAT
500 MHz bandwidth upgrade (RTM3004 only) (software)	RTM-B245	9730 €9,730.00 Excl. VAT
1 GHz bandwidth upgrade (RTM3004 only) (software)	RTM-B2410	12740 €12,740.00 Excl. VAT
Function and 4-bit pattern generator (software)	RTM-B6	940 €940.00 Excl. VAT
I2C/SPI serial triggering and decoding (software)	RTM-K1	1280 €1,280.00 Excl. VAT
UART/RS-232/RS-422/RS-485 serial triggering and decoding (software)	RTM-K2	1280 €1,280.00 Excl. VAT
CAN/LIN serial triggering and decoding (software)	RTM-K3	1280 €1,280.00 Excl. VAT
Audio triggering and decoding (I2S, LJ, RJ, TDM) (software)	RTM-K5	1450 €1,450.00 Excl. VAT
MIL-STD-1553 serial triggering and decoding (software)	RTM-K6	1380 €1,380.00 Excl. VAT
ARINC 429 serial triggering and decoding (software)	RTM-K7	1450 €1,450.00 Excl. VAT
History and segmented memory (software)	RTM-K15	1280 €1,280.00 Excl. VAT
Power analysis (software)	RTM-K31	2000 €2,000.00 Excl. VAT
Bode plot analysis (software)	RTM-K36	1450 €1,450.00 Excl. VAT
Spectrum analysis and spectrogram (software)	RTM-K37	2000 €2,000.00 Excl. VAT
Application bundle (K1, K2, K3, K5, K6, K7, K15, K31, K36, K37 and B6) (software)	RTM-PK1	4000 €4,000.00 Excl. VAT
