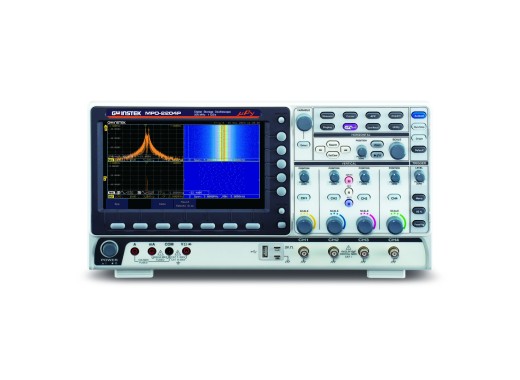

GW Instek MPO-2204P multi-function oscilloscope
Details
The GW Instek MPO-2204P from the MPO-2000 series is a 4-channel multi-function programmable oscilloscope with a bandwidth of 200MHz that offers elaborate Python support. This series of oscilloscopes has a built-in function generator, spectrum analyser, multimeter and 2-channel power supply. Furthermore, the MPO-2000 series has a Python script function, a built-in Python GUI library and Python external USB device control, which allows for the oscilloscope to support Python scripts without the need for an external PC.
Function generator
The built-in function generator has 2 channels and a bandwidth of 25MHz. This function allows you to create all the desired waveforms yourself.
Spectrum analyser
The built-in spectrum analyser of the MPO-2000 has a frequency range of DC to 500MHz with two channels. This allows users to measure and analyze the frequency domain signals of two channels at the same time. It is also equipped with a spectrogram function, which allows users to observe complex frequency domain fluctuations easily.
Multimeter
The built-in multimeter has a display of 5000 counts and can measure AC/DC voltage and current.
Power supply
The built-in power supply has 2 output channels and a maximum output voltage of 20V. And the connections for the power supply are on the rear of the device.
Model overview
We offer multiple oscilloscopes in the MPO-2000 series, differing in the bandwidth, the rise time and the number of channels:| Model | MPO-2102B | MPO-2104B | MPO-2204P |
|---|---|---|---|
| Bandwidth | 100 MHz | 100 MHz | 200 MHz |
| Rise time | 3.5 ns | 3.5 ns | 1.75 ns |
| Channels | 2 | 4 | 4 |
| Price |
Specifications
| Oscilloscope | |
| Memory depth | 10 Mpts |
| Sample rate | 1 GS/a (divided by the number of active channels) |
| Waveform capture rate | 120,000 wfm/s |
| Vertical resolution | 8 bits |
| Vertical scale | 1 mV/div - 10 V/div |
| Horizontal scale | 1 ns/div - 100 s/div |
| Function generator | |
| Max. frequency | 25 MHz |
| Channels | 2 |
| Vertical resolution | 14 bits |
| Sample rate | 200 MSa/s |
| Frequency resolution | 1 Hz |
| Built-in functions | Sine, Square, Pulse, Ramp, Noise |
| Output impedance | 50 Ω |
| Spectrum analyser | |
| Bandwidth | 1 kHz - 500 MHz |
| RBW | 1 Hz - 500 kHz |
| DANL | - 90 dBm/Hz |
| Tracking generator | No |
| Multimeter | |
| Display resolution | 5000 counts |
| Max. AC voltage | 700 V |
| Max. DC voltage | 1000 V |
| Max. AC current | 10 A |
| Max. DC current | 10 A |
| Max. resistance | 5 MΩ |
| Temperature | -50 - 1000 ℃ |
| Other functions | Diode, Continuity |
| True-RMS | No |
| Data logging | No |
| Power supply | |
| Outputs | 2 |
| Voltage range | 1 - 20 V |
| Current range | 0.25 - 1 A |
| Ripple | 50 mV |
| Interfaces | USB Host, USB Device, LAN, RJ-45, Web server, Go-NoGo BNC |
| Display | 8" TFT LCD (800x480) |
| Dimensions | 384 x 208 x 127.3 mm |
| Weight | 3 kg |
Accessories
The GW Instek MPO-2204P comes with:- Power cord
- 4x 200 MHz passive probe
- 2x BNC- BNC cable
- 1x alligator clip test lead
- 1x banana plug test lead
- Declaration of traceable calibration
Pros and cons
- Supports Python scripts without the need of an external PC
- 5-in-1 mulit-functional oscilloscope
Downloads
| GW Instek MPO-2000 brochure |  (5.87 MB) | Download |
| GW Instek MPO-2000 user manual | (8.92 MB) | Download |
| GW Instek MPO-2000 programming manual | (3.98 MB) | Download |
| DTC sample | (126.04 KB) | Download |
