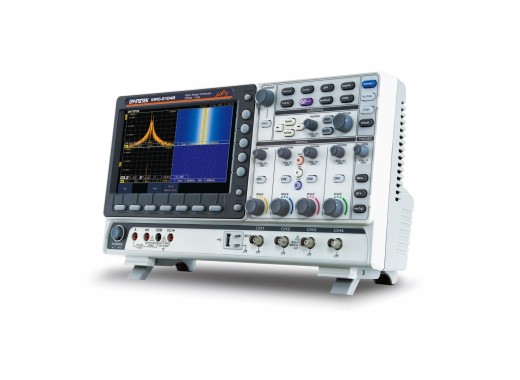

GW Instek MPO-2104B multi-function oscilloscope
Details
The GW Instek MPO-2104B is a multi-function programmable oscilloscope with a bandwidth of 100MHz and 4 channels. This series of oscilloscopes has a built-in function generator, spectrum analyser, multimeter and 2-channel power supply. Furthermore, the MPO-2000 series has a Python script function. Because of this function, the oscilloscope supports Python scripts without the use of an external PC.
Function generator
The built-in function generator has 2 channels and a maximum frequency of 25MHz. This function allows you to create all the desired waveforms yourself.
Spectrum analyser
The built-in spectrum analyser of the MPO-2000 has a frequency range of 500MHz with two channels. This allows users to measure and analyze the frequency domain signals of two channels at the same time. It is also equipped with a spectrogram function, which allows users to observe complex frequency domain fluctuations easily.
Multimeter
The built-in multimeter has a display of 5000 counts and can measure AC/DC voltage and current.
Power supply
The built-in power supply has 2 output channels and a maximum output voltage of 20V. The power supply connections are located on the backside.
Model overview
We offer multiple oscilloscopes in the MPO-2000 series, differing in the bandwidth, the rise time and the number of channels:| Model | MPO-2102B | MPO-2104B | MPO-2204P |
|---|---|---|---|
| Bandwidth | 100 MHz | 100 MHz | 200 MHz |
| Rise time | 3.5 ns | 3.5 ns | 1.75 ns |
| Channels | 2 | 4 | 4 |
| Price |
Specifications
| Oscilloscope | |
| Memory depth | 10 Mpts |
| Sample rate | 1 GS/a (divided by the number of active channels) |
| Waveform capture rate | 120,000 wfm/s |
| Vertical resolution | 8 bits |
| Vertical scale | 1 mV/div - 10 V/div |
| Horizontal scale | 1 ns/div - 100 s/div |
| Function generator | |
| Bandwidth | 100 mHz - 25 MHz |
| Channels | 2 |
| Vertical resolution | 14 bits |
| Sample rate | 200 MSa/s |
| Frequency resolution | 1 Hz |
| Built-in functions | Sine, Square, Pulse, Ramp, Noise |
| Output impedance | 50 Ω |
| Spectrum analyser | |
| Bandwidth | DC - 500 MHz |
| RBW | 1 Hz - 500 kHz |
| DANL | - 90 dBm/Hz |
| Tracking generator | No |
| Multimeter | |
| Display resolution | 5000 counts |
| Max. AC voltage | 700 V |
| Max. DC voltage | 1000 V |
| Max. AC current | 10 A |
| Max. DC current | 10 A |
| Max. resistance | 5 MΩ |
| Temperature | -50 - 1000 ℃ |
| Other functions | Diode, Continuity |
| True-RMS | No |
| Data logging | No |
| Power supply | |
| Outputs | 2 |
| Voltage range | 1 - 20 V |
| Current range | 0.25 - 1 A |
| Ripple | 50mV |
| Interfaces | USB Host, USB Device, LAN, RJ-45, Web server, Go-NoGo BNC |
| Display | 8" TFT LCD (800x480) |
| Dimensions | 384 x 208 x 127.3 mm |
| Weight | 3 kg |
Accessories
The GW Instek MPO-2104B comes with:- Power cord
- 4x GTP-100B-4 passive probe (DC - 100MHz)
- 2x BNC - BNC cable
- 1x alligator clip test lead
- 1x banana plug test lead
- Declaration of traceable calibration
Pros and cons
- Supports Python scripts without the need of an external PC
- 5-in-1 multi-functional oscilloscope
Downloads
| GW Instek MPO-2000 brochure |  (5.87 MB) | Download |
| GW Instek MPO-2000 user manual | (8.92 MB) | Download |
| GW Instek MPO-2000 programming manual | (3.98 MB) | Download |
| DTC sample | (126.04 KB) | Download |
