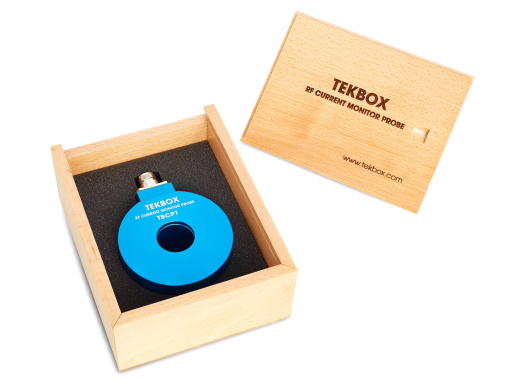

Tekbox TBCP1 25mm RF current probe (500 Mhz)
Details
The Tekbox TBCP1-500 RF current probe is designed to measure high-frequency current. The probe has a range of 10 kHz to 500 MHz and can measure high-frequency current up to 3 A. For frequencies up to 400 Hz, current up to 80 A can be measured.
As you would expect from Tekbox, the TBCP1-500 RF current probe is also of excellent quality at an affordable price.
Specifications
| 3 dB bandwidth | 500 MHz |
| Frequency range | 30 kHz - 500 MHz |
| Transfer impedance | -6 - 20 dBΩ |
| Diameter opening | 25 mm |
| Type connector | N Female |
| Maximum current | 80 A (DC - 400 Hz) 3 A (RF) |
| Weight | 320 g |
Pros and cons
- High frequency range
Downloads
| Tekbox TBCP1-500 manual |
 (376.11 KB) |
Download |
