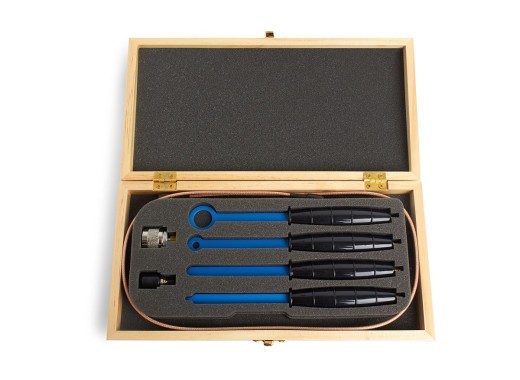

Tekbox TBPS01 EMC near field probe set
Details
This near field probe set consists of 4 probes with which electromagnetic emission can be measured.
This probe set makes it possible to locate potential electromagnetic interference sources within a circuit or device.
In this way, it is possible to check whether the device to be tested complies with the EMC-guidelines.
The probes work in the same way as antennas with large bandwidth and can measure the emitted emission of, for example,
components, PCB tracks or other parts of a system that can radiate RF.
An alternative application of these probes is an immunity test by radiating an RF signal to a
potentially sensitive part of a circuit.
Due to the narrow design, these probes are very suitable for measuring between small openings or components. Furthermore,
the large probes can first be used for general measurement, after which the small probes can be used to determine the origin of the emission even more accurately.
The probes are shielded to prevent unwanted noise from being picked up.
Probe overview
The table below shows
| Model | Length | Shape | Width of loop/point | Frequency range |
|---|---|---|---|---|
| H20 (Magnetic field) | 170 mm | Loop | 20 mm | 6 GHz |
| H10 (Magnetic field) | 170 mm | Loop | 10 mm | 6 GHz |
| H5 (Magnetic field) | 170 mm | Loop | 5 mm | 6 GHz |
| E5 (Electric field) | 170 mm | Point | 5 mm | 6 GHz |
Accessories
This set comes including:- 3x Magnetic field probe
- 1x Electric field probe
- 75 cm SMB to SMA cable
- SMA-female to N-male coaxial adapter
- Storage box
