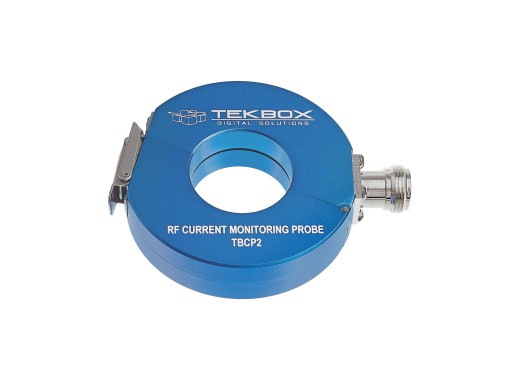

The TBCP2 series from Tekbox is a snap-on RF current probe designed for EMC pre-compliance testing, capable of capturing across a wide frequency range. Because the TBCP2 is a snap-on probe, it can be easily attached to cables with large plugs on the ends.
We also sell the calibrator for the TBCP2, see this page.
TBCP2 model overview
The TBCP2 series includes specialised models for lower frequencies and high current pulses:
| Model |
Characterized Frequency Range |
Features / Bandwidth |
Price |
| TBCP2-30K400 |
10 Hz - 500 MHz |
3dB bandwidth: 30 kHz - 400 MHz. |
679
€679.00
Excl. VAT
|
| TBCP2-1M100 |
10 kHz - 200 MHz |
3dB bandwidth: 1 MHz - 100 MHz. Capture current pulses up to 400A. |
845
€845.00
Excl. VAT
|
| TBCP2-1M800 |
10 kHz - 1 GHz |
3dB bandwidth: 1 MHz - 800 MHz. Capture current pulses up to 400A. |
845
€845.00
Excl. VAT
|
| TBCP2-3M900 |
10 kHz - 1 GHz |
3dB bandwidth: 3 MHz - 900 MHz. Capture current pulses up to 40A. |
845
€845.00
Excl. VAT
|
| TBCP2-6M300 |
10 kHz - 500 MHz |
3dB bandwidth: 6 MHz - 300 MHz. Capture current pulses up to 500A. |
845
€845.00
Excl. VAT
|
| TBCP2-20M700 |
10 kHz - 800 MHz |
Capture short current pulses up to 300A. |
845
€845.00
Excl. VAT
|
| TBCP2-30M1000 |
10 kHz - 1 GHz |
Capture short current pulses up to 50A. |
749
€749.00
Excl. VAT
|
| TBCP2-250 |
30 kHz - 250 MHz |
Standard flat response. |
649
€649.00
Excl. VAT
|
| TBCP2-500 |
30 kHz - 500 MHz |
Standard flat response. |
709
€709.00
Excl. VAT
|
| TBCP2-750 |
30 kHz - 750 MHz |
Standard flat response. |
769
€769.00
Excl. VAT
|
Series Comparison
The models in the TBCP series differ in the characterised frequency range and the aperture.
| Model | TBCP1 | TBCP2 | TBCP3 | TBCP4 |
| Characterized frequency range | 10 kHz - 200/250/500 MHz | 10 Hz - 1 GHz | 30 kHz - 1 GHz | 10 kHz - 250/500/750 MHz |
| Aperture | 25 mm | 32 mm | 17 mm | 32 mm |
Specifications
| Characterized frequency range |
10 kHz - 1 GHz |
| Max primary current (pulse) |
50 A |
| Max primary current (RF) |
3 A |
| Connector type |
N-female |
| Weight |
320 g |
| Aperture diameter |
32 mm |
| Outside diameter |
73 mm |
| Height |
20 mm |
