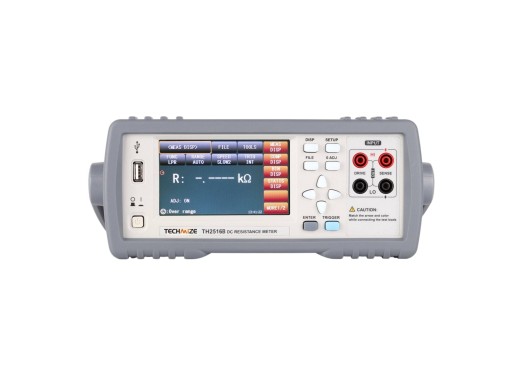

Techmize TH2516B resistance meter
Details
The Techmize TH2516B DC resistance meter is a precise device for accurate low-resistance measurements, making it suitable for solder joints. The meter has 7 resistance ranges from 1µΩ to 20kΩ, with a resolution down to 1µΩ for precise detection of resistance changes. With an accuracy of up to 0.1%, it can detect small changes in resistance with confidence.
Offset voltage compensation reduces errors caused by thermoelectric effects at the test contacts. The TH2516B supports 4-terminal testing and sampling speeds up to 50 samples/s. It also includes interfaces such as RS232, USB and handler for automated setups.
Techmize products are manufactured by Tonghui - the company behind well-known high-quality products in the test & measurement industry. With Techmize, they have introduced their own-branded European product line with local service & support, offering the same level of quality at a fair price level.
Model overview
| Models | TH2515 | TH2516 | TH2516B |
|---|---|---|---|
| Resistance measurment range | 0.1 μΩ - 110 MΩ | 1 μΩ - 2 MΩ | 1 μΩ - 20 kΩ |
| Temperature compensation | Yes |
Yes |
No |
| Display resolution | 5 ½ digits, 200,000 | 4 ½ digits, 20,000 | 4 ½ digits, 20,000 |
| Maximum sampling rate | 100 samples/s | 50 samples/s | 50 samples/s |
| Price |
Specifications
| Resistance measurements | |||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||
| Trigger | Internal / Manual / External / BUS | ||||||||||||||||||||||||||||||||
| Power supply | 99 - 242 V AC | ||||||||||||||||||||||||||||||||
| Display | 4.3" TFT LCD (480x272) | ||||||||||||||||||||||||||||||||
| Interfaces | RS232C, USB Host, USB Device, handler | ||||||||||||||||||||||||||||||||
| Dimensions | 215 x 89 x 360 mm | ||||||||||||||||||||||||||||||||
| Weight | 3.6 kg | ||||||||||||||||||||||||||||||||
Accessories
The TH2516B comes by default with:
- 1x Three-wire power line
- 1x Four-terminal test cable
- 2x 2A fuse
- 1x PT500 temperature sensor
Pros and cons
- High digital resolution
Downloads
| Techmize TH2516 series datasheet |  (789.11 KB) | Download |
| Techmize TH2516 series user manual | (1.64 MB) | Download |
