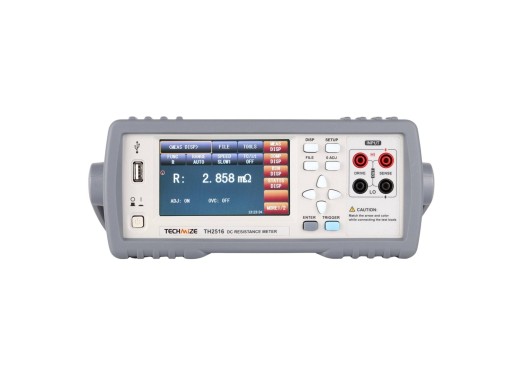

Techmize TH2516 resistance meter
Details
The Techmize TH2516 DC resistance meter is a precise device for accurate low-resistance measurements, making it suitable for solder joints. The meter has 9 resistance ranges from 1µΩ to 2MΩ, with a resolution down to 1µΩ for precise detection of resistance changes. With an accuracy of up to 0.05%, it can detect very small changes in resistance with confidence.
The TH2516 also has both temperature compensation and conversion to help keep results stable when ambient conditions change. Offset voltage compensation reduces errors caused by thermoelectric effects at the test contacts. The TH2516 supports 4-terminal testing and sampling speeds up to 50 samples/s. It also includes interfaces such as RS232, USB and handler for automated setups.
Techmize products are manufactured by Tonghui - the company behind well-known high-quality products in the test & measurement industry. With Techmize, they have introduced their own-branded European product line with local service & support, offering the same level of quality at a fair price level.
Model overview
| Models | TH2515 | TH2516 | TH2516B |
|---|---|---|---|
| Resistance measurment range | 0.1 μΩ - 110 MΩ | 1 μΩ - 2 MΩ | 1 μΩ - 20 kΩ |
| Temperature compensation | Yes |
Yes |
No |
| Display resolution | 5 ½ digits, 200,000 | 4 ½ digits, 20,000 | 4 ½ digits, 20,000 |
| Maximum sampling rate | 100 samples/s | 50 samples/s | 50 samples/s |
| Price |
Specifications
| Resistance measurements | |||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||
| Trigger | Internal / Manual / External / BUS | ||||||||||||||||||||||||||||||||||||||||
| Power supply | 99 - 242 V AC | ||||||||||||||||||||||||||||||||||||||||
| Display | 4.3" TFT LCD (480x272) | ||||||||||||||||||||||||||||||||||||||||
| Interfaces | RS232C, USB Host, USB Device, handler | ||||||||||||||||||||||||||||||||||||||||
| Dimensions | 215 x 89 x 360 mm | ||||||||||||||||||||||||||||||||||||||||
| Weight | 3.6 kg | ||||||||||||||||||||||||||||||||||||||||
Accessories
The TH2516 comes by default with:
- 1x Three-wire power line
- 1x Four-terminal test cable
- 2x 2A fuse
- 1x PT500 temperature sensor
Pros and cons
- High digital resolution
- High accuracy
- Temperature-corrected measurements
Downloads
| Techmize TH2516 series datasheet |  (789.11 KB) | Download |
| Techmize TH2516 series user manual | (1.64 MB) | Download |
