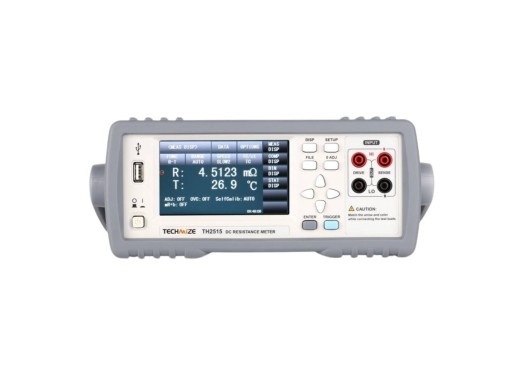

Techmize TH2515 resistance meter
Details
The Techmize TH2515 DC resistance meter is a highly precise device for accurate low-resistance measurements, making it suitable for solder joints. The meter has 11 resistance ranges from 0.1µΩ to 110MΩ, with a resolution down to 0.1µΩ for precise detection of resistance changes. With an accuracy of up to 0.01%, it can detect very small changes in resistance with confidence.
The TH2515 also has both temperature compensation and conversion to help keep results stable when ambient conditions change. Offset voltage compensation reduces errors caused by thermoelectric effects at the test contacts. The TH2515 supports 4-terminal testing and sampling speeds up to 100 samples/s. It also includes interfaces such as RS232, USB, LAN, handler, and optional GPIB for automated setups. Please contact us if you are interested in the GPIB adapter.
Techmize products are manufactured by Tonghui - the company behind well-known high-quality products in the test & measurement industry. With Techmize, they have introduced their own-branded European product line with local service & support, offering the same level of quality at a fair price level.
Model overview
| Models | TH2515 | TH2516 | TH2516B |
|---|---|---|---|
| Resistance measurment range | 0.1 μΩ - 110 MΩ | 1 μΩ - 2 MΩ | 1 μΩ - 20 kΩ |
| Temperature compensation | Yes |
Yes |
No |
| Display resolution | 5 ½ digits, 200,000 | 4 ½ digits, 20,000 | 4 ½ digits, 20,000 |
| Maximum sampling rate | 100 samples/s | 50 samples/s | 50 samples/s |
| Price |
Specifications
| Resistance measurements | |||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||
| Trigger | Internal / Manual / External / BUS | ||||||||||||||||||||||||||||||||||||||||||||||||
| Power supply | 99 - 242 V AC | ||||||||||||||||||||||||||||||||||||||||||||||||
| Display | 4.3" TFT LCD (400x272) | ||||||||||||||||||||||||||||||||||||||||||||||||
| Interfaces | RS232C, USB Host, USB Device, LAN, handler | ||||||||||||||||||||||||||||||||||||||||||||||||
| Dimensions | 215 x 87 x 335 mm | ||||||||||||||||||||||||||||||||||||||||||||||||
| Weight | 3.6 kg | ||||||||||||||||||||||||||||||||||||||||||||||||
Accessories
The TH2515 comes by default with:
- 1x Three-wire power line
- 1x Four-terminal test cable
- 2x 2A fuse
- 1x PT500 temperature sensor
Pros and cons
- High digital resolution
- High accuracy
- Temperature-corrected measurements
Downloads
| Techmize TH2515 datasheet |  (782.89 KB) | Download |
| Techmize TH2515 user manual | (2.23 MB) | Download |
