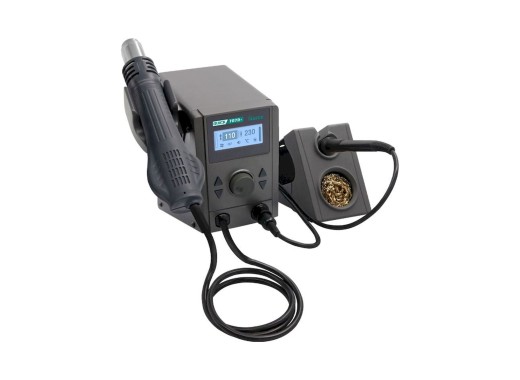

Quick 707D+ rework system
Details
The Quick 707D+ is an affordable 2 in 1 rework system from Quick, combining an 800W hot air tool and a 70W soldering iron in one compact unit. This rework system is suitable for SMD rework, desoldering, and everyday soldering on the repair bench. Furthermore, a brushless vortex fan delivers a soft, stepless airflow up to 30L/min across 10 levels, while the LCD display shows the live temperature of both the hot air tool and the iron. All metal heating elements sit separately from the soldering tip, which keeps consumable costs low and makes replacement simple.
The 707D+ shares its 960 series soldering tips and nozzles with the rest of the 707 series, so consumables stay widely available. For more hot air power, the Quick 709D+ has a higher output of 1350W and 50L/min. To discuss the right nozzles or tips for a specific job, contact us.
Specifications
| Hot air power | 800 W |
| Soldering iron power | 70 W |
| Temperature range (hot air) | 100 °C - 500 °C |
| Temperature range (soldering) | 100 °C - 480 °C |
| Air flow rate | 30 L/min, 10 levels |
| Tip system | Passive |
| Heating element | All metal |
| ESD safe | Yes |
| Tip to ground resistance/voltage | 2 Ω / 2 mV |
| Automatic standby | Yes |
| Display | LCD |
| Dimensions | 98 x 170 x 151 mm |
| Weight | 2.6 kg |
Accessories
The Quick 707D+ comes by default with:
- Hot air handpiece
- Soldering iron
- Iron holder with brass cleaning wool
- 3x hot air nozzles (A2025, A2064, A2084)
- Soldering tip, 0.2mm needle point
- EU power cord
Pros and cons
- Hot air and soldering iron combined
- Low consumable cost (separate heater and tip)
- Automatic sleep mode
- Passive soldering tips
Downloads
| Quick 707 series datasheet |  (242.08 KB) | Download |
| Quick 707D+ user manual | (1.46 MB) | Download |
