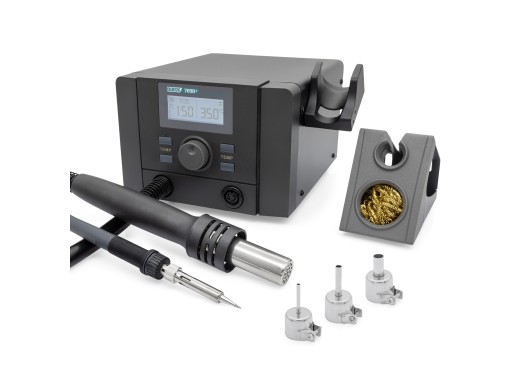

This Quick 709D+ rework system with an excellent price/quality ratio includes a very powerful 1350 Watt hot-air soldering station and a 70 Watt soldering station.
Since the Quick 709D+ is a 2-in-1 design, it is multifunctional and saves space on your workbench. On the LCD display, a dynamic visual of the temperature of rework and soldering as well as the digital temperature calibration is shown.
Moreover, the rework section as well as the soldering section of the Quick 709D+ have a temperature stability of ± 2 °C. The rework system comes with handles which are ergonomic, light and comfortable to use.
Furthermore, the rework system is provided with functionalities such as intelligent auto sleeping and enery saving.
Specifications
| Hot-air soldering station
|
| Power | 1350 W |
Temperature range
| 100 °C - 500 °C |
Air flow rate
| 50 L/min |
| Compressor type | Fan |
| Temperature stability | ± 2 °C (Stationary air, no load) |
|
| Soldering station
|
| Power | 70 W |
Temperature range
| 100 °C - 480 °C |
| Tip system | Passive |
| Tip to earth resistance/voltage | < 2 Ω / < 2 mV |
|
| Dimensions | 180 x 210 x 131 mm |
| Weight | 3.3 kg |
Buy here your 709D+ tips
The Aoyue / Atten soldering tips are compatible with the Quick 709D+ rework system.
Accessories
The Quick 709D+ comes by default with:
- A1124 (2.5 mm ⌀ nozzle), A1130 (4.4 mm ⌀ nozzle), A1300 (8.4 mm ⌀ nozzle)
- 1x 0.5 mm round tip
- Power cord
