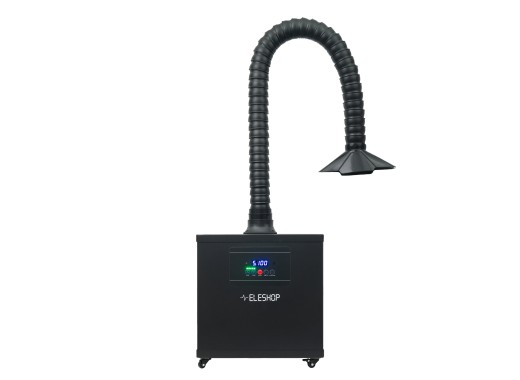

FE1BD-ESD soldering fume extractor
Details
The FE1BD-ESD soldering fume extractor is suitable for applications where harmful fumes are produced. The wide variety of applications include soldering, spray painting, laser carving, and much more. Moreover, with its triple-filter design and powerful suction, the absorbing efficiency and filtration ratio can reach up to 99.97%. This efficiency is mostly due to the efficiency of the included HEPA filter. The purified air can be discharged directly indoors without any worries.
This fume extractor is specifically designed to deliver powerful suction. On top of that, you can adjust the flow rate to the desired value with the digital control panel or the included IR remote controller.
Not only is the fume extractor durable and strong, it also has a surface resistance of 106 - 1011 Ω, which makes this fume extractor ESD safe. For a less expensive fume extractor without ESD safety, you can look at the FE1W soldering extractor.
For this model, spare FE1B(D)-ESD rubber hoods are available here. The hoods are ESD safe and have an opening measuring 27 by 9 cm.
Specifications
| Inlets | 1 |
| Surface resistance | 106 - 1011 Ω |
| Power | 210 W |
| Airflow | 133 - 290 m3/h |
| Noise level | 50 - 62 dB |
| Filter | pre- + HEPA (H13) + main filter |
| Filter efficiency |
99.97% of particles >0.3μm |
| Amount of carbon | 1.5 kg |
| Tube length | 1.4 m |
| Dimensions | 425 x 250 x 410 mm |
| Weight | 14 kg |
Accessories
The FE1BD-ESD fume extractor comes with:
- IR remote controller
- Power cable
- Air duct
- Main filter
- HEPA filter
- 3 x pre-filter
Pros and cons
- Low noise
- Up to 99.97% efficiency due to the HEPA filter
- ESD safe
- Remote control only works without obstruction
