SMD training kit for hand soldering: 300 pcs
Details
Tip:

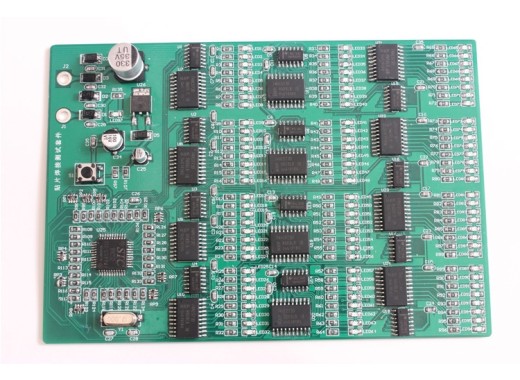

This SMD training kit for hand soldering is perfect for practising soldering on different SMD components. The kit contains 300 components such as 0805 resistors, capacitors, LEDs, and ICs such as SOP4, SOP20, and TQFP4. Additionally, 12 SMD testing groups range from an easy soldering level to a more difficult soldering level. LEDs on the PCB indicate whether the soldering is performed correctly. The LEDs of a certain group will stay off if there is a mistake in the soldering. Finally, the training kit works with an AC or 9V DC power supply. Please note that a power supply or cables are not included in the SMD training kit.
Pros and cons
- Great for practicing hand soldering
- LEDs indicate whether soldering was performed correctly
Downloads
| 300 pcs SMD training kit instructions |  (280.96 KB) | Download |
| 300 pcs SMD training kit schematic diagram | (685.93 KB) | Download |
| SMD training kit 300 pcs contents | (963.62 KB) | Download |
Similar products
Latest customer reviews
Read all reviews (2)
Review by Yegor
Posted on 23/03/2025
So after I finished it I definitely think its worth to mess with. I took missing R107 (10k) elsewhere and that “res2” is just the same resistor that is used for led. It requires 9AC for reasons but you can inject 6 volts DC after voltage regulator. It important to power it because it will show that there will be a lot of soldering problems you may think you didn’t have. I had half of the board not powered up and many diodes just seemed blinked randomly. It was bad joints across the board I had to find and fix. Very cool!
Review by Yegor
Posted on 14/03/2025
I appreciate that this kit exists at this price. But it has two D3, R135 mentions RES2 for resistor (what is that even) and R107 requires 10k resistor which wasn’t in kit and hasn’t even mentioned in list of components (you can find that it skipped between 106 and 108). It has 10k resistors but stacked and they are all needed anyway for different places.
- - -
Reply by Eleshop: We are sorry that the contents do not exactly match. It should have. But luckily you have sufficient components to do SMD hand soldering training, for which the product is meant.
- - -
Reply by Eleshop: We are sorry that the contents do not exactly match. It should have. But luckily you have sufficient components to do SMD hand soldering training, for which the product is meant.
