Siglent SVA1032X spectrum & vector network analyser
Promotion! If you buy a Siglent SVA1000X spectrum analyser in combination with the Siglent SRF5030T EMI probes, you automatically receive the SVA1000X-EMI option for free. Promotion valid until June 30th 2024.
Details

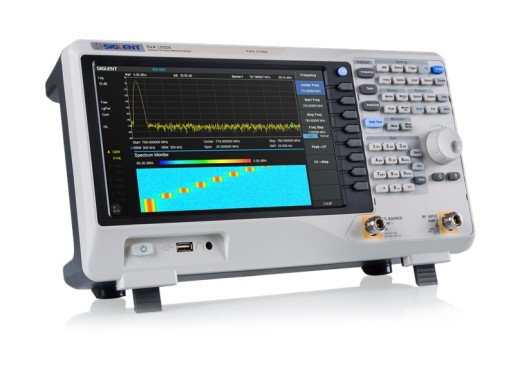

Siglent SVA1032X spectrum and vector network analyser has an excellent price/quality ratio, as it has a frequency range up to 3.2 GHz and features the functions of a vector network analyser. The SVA1032X has a large 10.1" LCD display and is equipped with advanced measurement functions. This spectrum analyser has a preamplifier, with which the average noise experienced by the device is -161 dBm/Hz. The analyser is equipped with the function of a tracking generator. There are also options available to expand your spectrum analyser to suit your needs.
Vector network analyser
Update! The SVA1032X is now delivered with VNA license by default.
With the VNA you can determine the performance of radio frequency and microwave equipment by means of reflection and transmission coefficients. These performances are displayed in S-parameters (scattering parameters, more information on these parameters can be found at Wikipedia). In the case of a VNA, both the amplitude and phase (S11 and S21) of the signal are determined.
EEVblog also made a video about the SVA1015X, which is very similar to the SVA1032X, containing examples and explanations of the VNA function, which you can view here.
Siglent SSA and SVA series
Siglent offers several series of spectrum analysers, of which you can find a brief overview below.
| Serie | SSA3000X | SSA3000X-PLUS | SSA3000X-R | SVA1000X |
|---|---|---|---|---|
| Models | SSA3021X SSA3032X |
SSA3015X-PLUS SSA3021X-PLUS SSA3032X-PLUS SSA3075X-PLUS |
SSA3032X-R SSA3050X-R SSA3075X-R |
SVA1015X SVA1032X SVA1075X |
| Max. bandwidth | 3.2 GHz | 7.5 GHz | 7.5 GHz | 7.5 GHz |
| VNA | No |
No |
Yes, and DTF |
Yes |
| Real-time | No |
No |
Yes |
No |
| Options | AMK, EMI, refl | AMK, EMI, refl, AMA, DMA | AMK, EMI, AMA, DMA, RT40 | AMK, EMI, AMA, DMA, DTF |
| Connectivity | - | Touchscreen, Mouse & keyboard, Webserver | Touchscreen, Mouse & keyboard, Webserver | Touchscreen, Mouse & keyboard, Webserver |
Model overview SVA1000X series
Here you will find an overview of the differences between the models of the Siglent SSA3000X-R series. The main difference lies in the bandwidth and average noise.
| Model | SVA1015X | SVA1032X | SVA1075X |
|---|---|---|---|
| Bandwidth | 9 kHz - 1.5 GHz | 9 kHz - 3.2 GHz | 9 kHz - 7.5 GHz |
| VNA Bandwidth | 100 kHz - 1.5 GHz | 100 kHz - 3.2 GHz | 100 kHz - 7.5 GHz |
| Tracking generator | 100 kHz - 5.0 GHz | 100 kHz - 3.2 GHz | 100 kHz - 7.5 GHz |
| DANL | ≤-156 dBm/ Hz | ≤-161 dBm/ Hz | ≤-165 dBm/ Hz |
| Price |
Specifications
| Resolution | 1 Hz |
| RBW | 1 Hz - 1 MHz |
| VNA | Yes |
| Total amplitude accuracy | < 0.7 dB |
| Third Order Intercept | + 10 dBm |
| Phase noise | ≤-98 dBc/Hz |
| Amplitude display | Log: 1 - 200 dB Linear: 0 - reference |
| Interfaces | USB host, USB device, LAN |
| Display | 10.1" touchscreen (1024x600) |
| Weight | 4.6 kg |
| Dimensions | 393 x 207 x 116.5 mm |
Options
| Calibration kit | Open load Shortcircuited load Phase matched load (50 Ω) Through adaptor | |
| Spectrum analysis utility set - UKitSSA3X | 1x N (Male) - SMA (Male) cable 1x N(Male) - N(Male) cable 2x N (Male) - BNC (Female) adapter 2x N (Male) - SMA (Female) adapter 1x 10 dB attenuator | |
| EMI licensing options - SVA1000X-EMI | EMI measuring set EMI filter and quasi-peak detector EMI test option in EasySpectrum software | |
| SRF5030T EMI probes | This near field probe set contains 3 magnetic field probes (20, 10 and 5 mm resolution) and 1 electric field probe (5 mm resolution) for pre-compliance testing of printed circuit boards. | |
| Advanced measurement set license - SVA1000X-AMK | APCR, CHPower, OBW, ect. | |
| Distance to fault license - SVA1000X-DTF | This option allows you to determine the distance to a defect/fault with this analyser. | |
| Digital modulation analysis - SVA1000X-DMA | Digital modulation analysis functions, including ASK and FSK. | |
| Analog modulation analysis - SVA1000X-AMA | Analog modulation analysis functions, including AM and FM. | |
| USB to GPIB | With this option, you can can control the function generator through GPIB. |
Accessories
The SVA1032X comes with:
- USB cable
- Power cord
Pros and cons
- Full spectrum analyser
- VNA included
- Many expansion possibilities
- No real time options
Downloads
| SVA1000X Programming guide |
 (3.85 MB) |
Download |
| User manual SVA1000X |
(6 MB) |
Download |
| Siglent SVA1000X datasheet |
(1.81 MB) |
Download |
