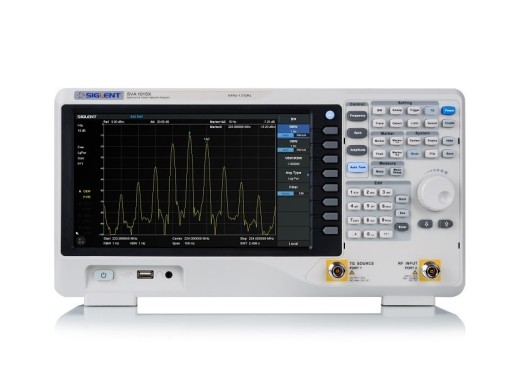

The Siglent SVA1015X spectrum and vector network analyser has an excellent price/quality ratio, as it has a frequency range of up to 1.5 GHz and has the functions of a vector network analyser. This spectrum analyser has a large 10.1" LCD display and is equipped with advanced measurement functions. This spectrum analyser has a preamplifier, which means that the average noise experienced by the device is -156 dBm/Hz. This analyser comes standard with support for a tracking generator. There are also options available for this spectrum analyser to meet your requirements and preferences.

Vector network analyser

Update! The SVA1015X is now delivered with VNA license by default.

With the VNA you can determine the performance of radio frequency and microwave equipment by means of reflection and transmission coefficients. These performances are displayed in S-parameters (scattering parameters, more information on these parameters can be found at Wikipedia). In the case of a VNA, both the amplitude and phase (S11 and S21) of the signal are determined.

EEVblog also made a video about the SVA1015X with examples and explanations of the VNA function, which you can view here.

Siglent SSA and SVA series

Siglent offers several series of spectrum analysers, of which you can find a brief overview below.

SerieSSA3000XSSA3000X-PLUSSSA3000X-RSVA1000X
Models SSA3021X
SSA3032X
SSA3015X-PLUS
SSA3021X-PLUS
SSA3032X-PLUS
SSA3075X-PLUS
SSA3032X-R
SSA3050X-R
SSA3075X-R
SVA1015X
SVA1032X
SVA1075X
Max. bandwidth 3.2 GHz 7.5 GHz 7.5 GHz 7.5 GHz
VNA
No
No
Yes, and DTF
Yes
Real-time
No
No
Yes
No
Options AMK, EMI, refl AMK, EMI, refl, AMA, DMA AMK, EMI, AMA, DMA, RT40 AMK, EMI, AMA, DMA, DTF
Connectivity - Touchscreen, Mouse & keyboard, Webserver Touchscreen, Mouse & keyboard, Webserver Touchscreen, Mouse & keyboard, Webserver

Model overview SVA1000X series

Here you will find an overview of the differences between the models of the Siglent SVA1000X series. The main difference lies in the bandwidth and average noise.

ModelSVA1015XSVA1032XSVA1075X
Bandwidth 9 kHz - 1.5 GHz 9 kHz - 3.2 GHz 9 kHz - 7.5 GHz
VNA Bandwidth 100 kHz - 1.5 GHz 100 kHz - 3.2 GHz 100 kHz - 7.5 GHz
Tracking generator 100 kHz - 5.0 GHz 100 kHz - 3.2 GHz 100 kHz - 7.5 GHz
DANL ≤-156 dBm/ Hz ≤-161 dBm/ Hz ≤-165 dBm/ Hz
Price 1359 €1,359.00 Excl. VAT 2969 €2,969.00 Excl. VAT 7609 €7,609.00 Excl. VAT

Specifications

Resolution1 Hz
RBW1 Hz - 1 MHz
VNA
Yes
Total amplitude accuracy < 1.2 dB
Third Order Intercept + 10 dBm
Phase noise ≤-99 dBc/Hz
Amplitude display Log: 1 - 200 dB
Linear: 0 - reference
Interfaces USB host, USB device, LAN
Display 10.1" touchscreen (1024x600)
Weight4.6 kg
Dimensions 393 x 207 x 116.5 mm

Options

Calibration kit Open load
Shortcircuited load
Phase matched load (50 Ω)
Through adaptor

Calibration kit

Siglent mechanical calibration set for VNA
339 €339.00 Excl. VAT
Info
Spectrum analysis utility set - UKitSSA3X 1x N (Male) - SMA (Male) cable
1x N(Male) - N(Male) cable
2x N (Male) - BNC (Female) adapter
2x N (Male) - SMA (Female) adapter
1x 10 dB attenuator

UKitSSA3X

Spectrum analyser utility kit
235 €235.00 Excl. VAT
Info
EMI licensing options - SVA1000X-EMI EMI measuring set
EMI filter and quasi-peak detector EMI test option in EasySpectrum software

SVA1000X-EMI

Siglent SVA1000X-EMI license
389 €389.00 Excl. VAT
Info
SRF5030T EMI probes This near field probe set contains 3 magnetic field probes (20, 10 and 5 mm resolution) and 1 electric field probe (5 mm resolution) for pre-compliance testing of printed circuit boards.

SRF5030T

Siglent SRF5030T EMI probe set
499.17 €499.17 Excl. VAT
Info
Advanced measurement set license - SVA1000X-AMK APCR, CHPower, OBW, ect.

SVA1000X-AMK

Siglent SVA1000X-AMK license
364 €364.00 Excl. VAT
Info
Distance to fault license - SVA1000X-DTF This option allows you to determine the distance to a defect/fault with this analyser.

SVA1000X-DTF

Siglent SVA1000X-DTF license
249 €249.00 Excl. VAT
Info
Digital modulation analysis - SVA1000X-DMA Digital modulation analysis functions, including ASK and FSK.

SVA1000X-DMA

Siglent SVA1000X-DMA license
469 €469.00 Excl. VAT
Info
Analog modulation analysis - SVA1000X-AMA Analog modulation analysis functions, including AM and FM.

SVA1000X-AMA

Siglent SVA1000X-AMA license
286 €286.00 Excl. VAT
Info
USB to GPIB With this option, you can can control the function generator through GPIB.

USB-GPIB

Siglent USB-GPIB adapter
123 €123.00 Excl. VAT
Info

Accessories

The SVA1015X comes with:

  • USB cable
  • Power cord
