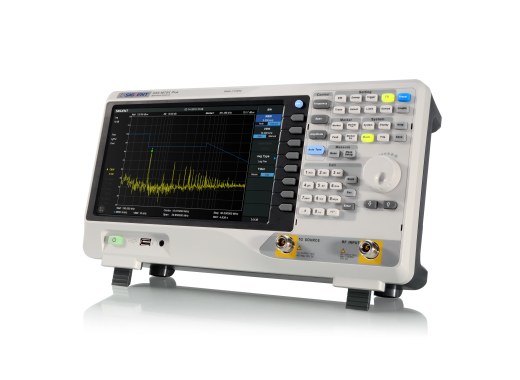

Siglent SSA3075X-Plus spectrum analyser
Details
The Siglent SSA3075X Plus spectrum analyser is an extension to the existing SSA3000X Plus series and comes with a gigantic bandwidth from 9 kHz to no less than 7.5 GHz. The resolution of the measurement can be set from as little as 1 Hz, making it possible to measure very precisely. A striking feature of this spectrum analyser is the low noise that affects the signal. Only -165 dBm/Hz is the typical noise the analyser experiences. The PLUS series is in many ways similar to its predecessor, only the PLUS series has a touch screen display and standard tracking generator. There are also several options available for the PLUS series.
With the bandwidth up to 7.5 GHz, almost all common wireless communication frequencies can be easily measured. For example GSM signals, which start at 380 MHz and run up to 1.9 GHz, are easy to measure with these meters. A handy optional feature for measuring radio signals is the ability to easily measure Adjacent Channel Power Ratio (ACPR), a requirement for radio communication, because the available bandwidths should not overlap.
On the large 10.1 Inch touchscreen WVGA screen of 1024 by 600 pixels there is a lot of space to display the measured data. With the possibility to use up to 4 cursors at the same time, extensive information can easily be extracted from the data. This data can be displayed on a screen at the same time as the measured waveform. It is also possible to read out and control the analyser via the multiple interfaces.
Do you need an attenuator with various connectors for your spectrum analyser? Then this Siglent utility kit is for you. Click here for more information.
Siglent SSA and SVA series
Siglent offers several series of spectrum analysers, of which you can find a brief overview below.
| Series | SSA3000X | SSA3000X-PLUS | SSA3000X-R | SVA1000X |
|---|---|---|---|---|
| Models | SSA3021X
SSA3032X |
SSA3015X-PLUS
SSA3021X-PLUS SSA3032X-PLUS SSA3075X-PLUS |
SSA3032X-R
SSA3050X-R SSA3075X-R |
SVA1015X
SVA1032X SVA1075X |
| Max. bandwidth | 3.2 GHz | 7.5 GHz | 7.5 GHz | 7.5 GHz |
| Tracking generator | Yes |
Yes |
Yes |
Yes |
| VNA | No |
No |
Yes, and DTF |
Yes |
| Real-time | No |
No |
Yes |
No |
| Options | AMK, EMI, refl | AMK, EMI, refl, AMA, DMA | AMK, EMI, AMA, DMA, RT40 | AMK, EMI, AMA, DMA, DTF |
| Connectivity | - | Touchscreen, Mouse & keyboard, Webserver | Touchscreen, Mouse & keyboard, Webserver | Touchscreen, Mouse & keyboard, Webserver |
Model overview of SSA3000X-PLUS series
Here you will find an overview of the differences between the models in the Siglent SSA3000X-PLUS series. The main differences are bandwidth and noise.
| Model | SSA3015X-PLUS | SSA3021X-PLUS | SSA3032X-PLUS | SSA3075X-PLUS |
|---|---|---|---|---|
| Bandwidth | 9 kHz - 1.5 GHz | 9 kHz - 2.1 GHz | 9 kHz - 3.2 GHz | 9 kHz - 7.5 GHz |
| Tracking generator | 5 MHz - 1.5 GHz | 100 kHz - 2.1 GHz | 100 kHz - 3.2 GHz | 100 kHz - 7.5 GHz |
| RBW | 1 Hz - 1 MHz | 1 Hz - 1 MHz | 1 Hz - 1 MHz | 1 Hz - 3 MHz |
| DANL | - 156 dBm/Hz | - 161 dBm/Hz | - 161 dBm/Hz | - 165 dBm/Hz |
| Amplitude accuracy | < 1.2 dB | < 0.7 dB | < 0.7 dB | < 0.7 dB |
| Price |
Specifications
| Frequency resolution | 1 Hz |
| Internal reference frequency | 10 MHz |
| Vertical logaritmic range | 10 dB tot -100 dB |
| Built-in storage | 256 MB |
| Built-in pre-amp | Yes |
| AMK (optional) | CHP/ACPR/TOI/OBW/Monitor/Harmonic/CNR |
| AMA (optional) | AM/FM |
| DMA (optional) | ASK/FSK/PSK/QAM |
| EMI filter (optional) | 200 Hz, 9 kHz, 120 kHz, 1 MHz |
| Display | 10.1" touchscreen colour 1024 x 600 |
| Interfaces | USB host/device, LAN, RJ-45 |
| Dimensions | 393 x 207 x 116.5 (mm) |
| Weight | 4.4 kg |
Options
| EMI probes for pre-compliance testing (hardware) | SRF5030T | |
| Reflection measurement kit (hardware & software) | RBSSA3X25 | |
| EMI measurement kit (software) | SSA3000XPLUS-EMI | |
| Advanced measurement kit (software) | SSA3000XPLUS-AMK | |
| Digital modulation analysis (software) | SSA3000XPLUS-DMA | |
| Analog modulation analysis (software) | SSA3000XPLUS-AMA |
Siglent offers a wide range of software options for their products, often adding a lot of functionalities. For all information about the available options, please refer to the user manual at the bottom of this page.
Accessories
The Siglent SSA3075X-PLUS is delivered including:
- Power cord
- USB cable
- Calibration certificate
Pros and cons
- Enormous bandwidth
- Lower DANL
- Tracking generator
Downloads
| Siglent SSA3000X-PLUS datasheet |  (1.64 MB) | Download |
| SSA3000X Plus user manual | (5.77 MB) | Download |
