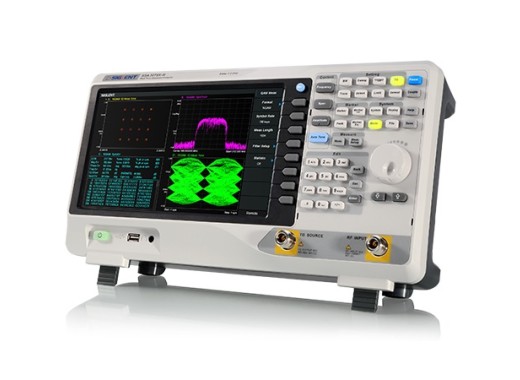

The Siglent SSA3050X-R is a real-time spectrum analyser with a range up to 5.0 GHz and a bandwidth of 25 MHz. A real-time spectrum analyser uses the Fast Fourier Transform to convert the signal from the time domain to the frequency domain. This ensures that short and fast signals can be better received. This mode offers a 100% guarantee to analyse all signals longer than 7.2 µs. Due to the low displayed noise level of these analysers, low power signals, such as harmonic signals and interference sources, are well displayed and easy to analyse. Also, the low minimum resolution bandwidth of 1 Hz makes it easy to separate signals with frequencies that are close together. The SSA3050X-R comes with a large 10.1-inch touchscreen on which all signals can be displayed in detail.
The Siglent SSA3050X-R is equipped with a tracking generator as standard. This, together with the high frequency range of 5.0 GHz, makes this analyser at the top of the segment. The spectrum analyser is not out of place in any professional working environment and can be used, for example, for EMC pre-compliance applications. EMI expansion and other options for this analyser can be found at the bottom of this page.
Siglent offers several series of spectrum analysers, of which you can find a brief overview below.
Serie | SSA3000X | SSA3000X-PLUS | SSA3000X-R | SVA1000X |
---|---|---|---|---|
Models | SSA3021X SSA3032X |
SSA3015X-PLUS SSA3021X-PLUS SSA3032X-PLUS SSA3075X-PLUS |
SSA3032X-R SSA3050X-R SSA3075X-R |
SVA1015X SVA1032X SVA1075X |
Max. bandwidth | 3.2 GHz | 7.5 GHz | 7.5 GHz | 7.5 GHz |
VNA | No |
No |
Yes |
Yes |
Real-time | No |
No |
Yes, and DTF |
No |
Options | AMK, EMI, refl | AMK, EMI, refl, AMA, DMA | AMK, EMI, AMA, DMA, RT40 | AMK, EMI, AMA, DMA, DTF |
Connectivity | - | Touchscreen, Mouse & keyboard, Webserver | Touchscreen, Mouse & keyboard, Webserver | Touchscreen, Mouse & keyboard, Webserver |
Here you will find an overview of the differences between the models of the Siglent SSA3000X-R series. The main difference lies in the bandwidth.
Model | SSA3032X-R | SSA3050X-R | SSA3075X-R |
---|---|---|---|
Bandwidth | 9 kHz - 3.2 GHz | 9 kHz - 5.0 GHz | 9 kHz - 7.5 GHz |
Tracking generator | 100 kHz - 3.2 GHz | 100 kHz - 5.0 GHz | 100 kHz - 7.5 GHz |
Price |
Resolution | 1 Hz |
Real-time analyse bandwidth | 25 MHz (standard), 40 MHz (optional) |
RBW | 1 Hz - 3 MHz |
DANL | ≤-165 dBm |
VNA | Yes |
Total amplitude accuracy | < 0.7 dB |
Third Order Intercept | + 14 dBm |
Phase noise | ≤-98 dBc/Hz |
Amplitude display | Log: 1 - 200 dB Linear: 0 - reference |
Interfaces | USB host, USB device, LAN |
Display | 10.1" touchscreen (1024x600) |
Weight | 4.6 kg |
Dimensions | 393 x 207 x 116.5 mm |
Calibration kit | Open load Shortcircuited load Phase matched load (50 Ω) Through adaptor | |
SSA3000XR-WDMA | Digital modulation analysis. ASK, FSK, MSK, PSK, QAM. | |
SSA3000X-R-AMA | Analog modulation analysis. AM, FM. | |
SSA3000XR-EMI | EMI filters option. EMI-filter, quasi-peakkdetector and pc-hostsoftware. | |
SRF5030T EMI probes | This near field probe set contains 3 magnetic field probes (20, 10 and 5 mm resolution) and 1 electric field probe (5 mm resolution) for pre-compliance testing of printed circuit boards. | |
SSA3000XR-AMK | Advanced measurement kit for measuring channel power, adjacent channel power ratio, occupied bandwidth, time domain power, carrier noise ratio, third-order intermodulation analysis and Harmonic analysis. | |
SSA3000XR-RT40 | With this option you increase the real-time bandwidth of the analyser from 25 MHz to 40 MHz. | |
USB to GPIB | With this option, you can can control the function generator through GPIB. |
