Siglent SDG8002A function generator
Details

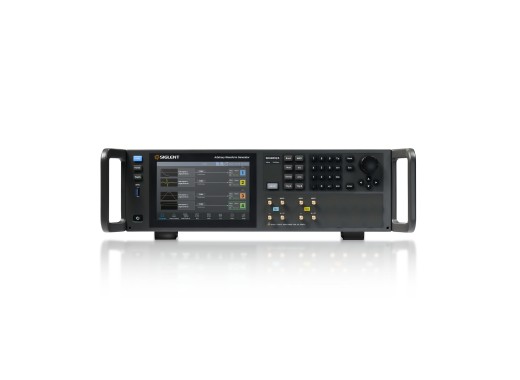

Please note: some images display the SDG8004A model. The SDG8002A is visually comparable.
The SDG8002A is a premium 2-channel arbitrary waveform generator from Siglent, and is suitable for all signal generation tasks in research, education and communication test labs. TrueArb and EasyPulse technologies deliver clean arbitrary waveforms and pulse signals, while integrated signal modulation, protocol generation, harmonic analysis, vector signal generation (VSG) and analogue or digital noise generation extend the range of supported test tasks. Furthermore, four selectable output paths (DC-HBW, DC-AMP, AC-DIR and AC-AMP) and up to 2GHz modulation bandwidth allow the user to pick the right balance of bandwidth, amplitude and noise floor for each measurement.
Each channel carries two independent marker outputs, and the generator also produces high-speed serial code signals up to 1.25Gbps plus multipulse, multitone and chirp waveforms. A 7-inch touchscreen display, an integrated 250GB SSD and a WebServer interface for remote control are included as standard. Optional software licences add multilevel sequence waves, expanded memory up to 4Gpts per channel, AC and DC amplified output paths, and full IQ vector signal generation through SigIQPro. To discuss the right combination of options for your application, please contact us.
Model overview
| SDG8002A | SDG8004A | |
|---|---|---|
| Channels | 2 | 4 |
| Marker outputs | 4 (2 per channel) | 8 (2 per channel) |
| Price |
Specifications
| Bandwidth | DC - 5 GHz |
| Vertical resolution | 16-bit |
| Sample rate | 10 GSa/s (interpolation), optional 12 GSa/s (interpolation) |
| Frequency resolution | 1 µHz |
| Amplitude range | 25 mVpp - 3 Vpp (mode-dependent) |
| Waveform length | 2 Gpts per channel |
| Modulation | AM, DSB-SC, FM, PM, FSK, ASK, PSK, PWM |
| Built-in functions | Sine, Square, Pulse, Ramp, Noise, Arb, multipulse, multitone, chirp |
| Output impedance | 50 Ω |
| Interfaces | USB host/device, LAN |
| Display | 7-inch touchscreen (1280x800) |
| Dimensions | 426 x 132.5 x 468 mm |
| Weight | 12.2 kg |
Accessories
The Siglent SDG8002A is delivered with:
- 2x SMA cables
- 4x 50 Ω terminators
- 1x Wireless mouse
- 1x USB cable
- 1x Power cord
Options
| SKU | Description |
|---|---|
| SDG8000-Multi-Level SEQ | Multilevel sequence waveform generation |
| DCAMP | DC amplified output path |
| ACAMP | AC amplified output path |
| 4GPTS | Expanded memory: 4 Gpts per channel |
| HSS | High-speed serial signal generation |
| MTONENL | Multitone generation with noise loading |
| IQ | IQ vector signal generation (SigIQPro) |
| USB-GPIB | USB to GPIB interface adapter |
| 10M_OCXO_L | 10 MHz OCXO external reference |
| DynamicPort-Cable | DynamicPort cable for marker/trigger connections |
Pros and cons
- 10 GSa/s sample rate (12 GSa/s optional), 16-bit resolution
- 2GHz IQ modulation bandwidth
- Advanced features (IQ, HSS, multilevel sequence, AC/DC AMP) are sold separately
Downloads
| Siglent SDG8000A user manual |  (6.73 MB) | Download |
| Siglent SDG8000A datasheet | (1.97 MB) | Download |
