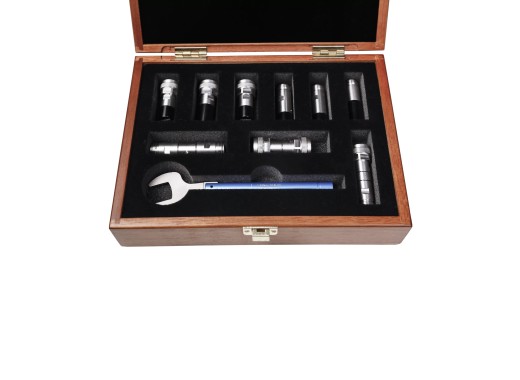

Siglent F504TS VNA calibration kit

The Siglent F504TS is a N-type VNA calibration kit for SVA1000X , SSA3000X-R and SHA800A series vector network analyzers, ideal for calibrating VNAs up to 9GHz. The F504TS kit includes mechanical calibration standards including open and short circuits, fixed terminations, and through adaptors, which allows for accurate calibration over a frequency range from DC to 9 GHz.

With both male and female N-type connectors and a torque wrench, the kit can be used for a wide variety of applications where precision of readings is needed. Whether a VNA needs to be set or maintained, the Siglent F504TS kit ensures reliable and accurate results.

The F504TS calibration kit includes:

• 9 calibration elements:
  • N-type Open (Male, Female)
  • N-type Short (Male, Female)
  • N-type Match/Load (Male, Female, 50 Ohms)
  • Through (Male-Male, Male-Female, Female-Female)
  Frequency range: DC to 9 GHz
• Torque wrench
• Wooden carrying case
