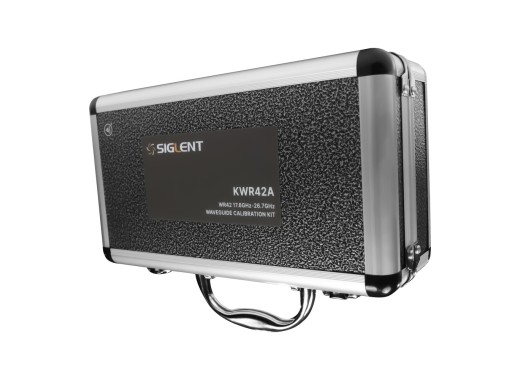

Siglent KWR42A waveguide calibration set

This waveguide calibration set can be used for the SNA5000 and SNA6000A series of vector network analysers.

This calibration set covers a frequency range of 18GHz to 26.5GHz and can conduct through-reflect-line (TRL) calibration. This calibration method is the most precise means of rectifying coaxial measurement error. With this set, you can determine all error components within the measurement device.

• 1x 2.92 mm female waveguide coaxial converter
• 1x 2.92 mm male waveguide coaxial converter
• 1x Waveguide load
• 2x Short
• 1x 1/8λ waveguide
• 1x 1/4λ waveguide
• 1x 3/8λ waveguide
• 25x Position bolt
• 4x Screw M3*12
• 4x Screw M3*16
• 4x Screw M3*20
• 24x Nut M3
• 24x Nut collar 3
• 1x Packing box
