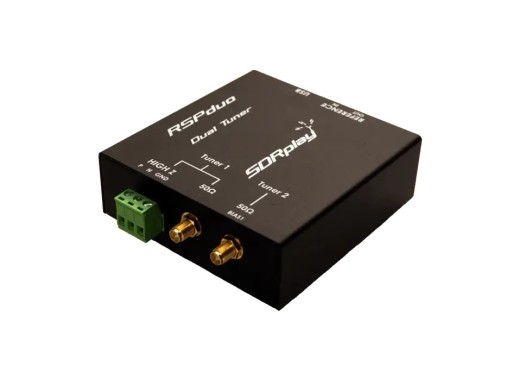

SDRPlay RSP Duo RF receiver
Details
The SDRPlay RSP Duo is a dual RF receiver housed in a single durable metal casing which features two independent tuners piped through a single USB port making it ideal for cross-band full-duplex reception. It covers a frequency spectrum from 1 kHz to 2 GHz, including VLF, LF, MW, HF, VHF, UHF, and L-band, without any gaps. The device can monitor a bandwidth of 10 MHz at a time and features three antenna inputs. A USB cable powers the device.
After connecting it to a computer (via USB 2.0) and an antenna, its functions are controlled by free downloadable professional software like SDRunoTM and SDRconnectTM. A documented API also allows developers to create new demodulators or applications around the platform.
CAUTION: The input of the SDRPlay is very sensitive to ESD discharges and excessive input power. This product should be used with great care. A faulty input will never be repaired by SDRPlay under warranty.
Specifications
| Spectrum | 1 kHz - 2 GHz |
| Bandwidth | 10 MHz |
| Frequency accuracy | 0.5 ppm (max) |
| Bias T | 4.7 V / 100 mA |
| Maximum input power | 0 dBm (continuous) 10 dBm (for short periods) |
| ADC | Until 14 bit |
| Platform support | Windows, Mac, Linux, Raspberry Pi 4/5 |
| Interface | USB type-B, 2 x SMA |
| Dimensions | 98 x 94 x 33 mm |
| Weight | 315 g |
Pros and cons
- Independent dual tuners
Downloads
| RSP Duo datasheet |  (447.26 KB) | Download |
| RSP Duo user manual | (691.5 KB) | Download |
| Must read: protect your SDRPlay from RF damage | (4.49 MB) | Download |
