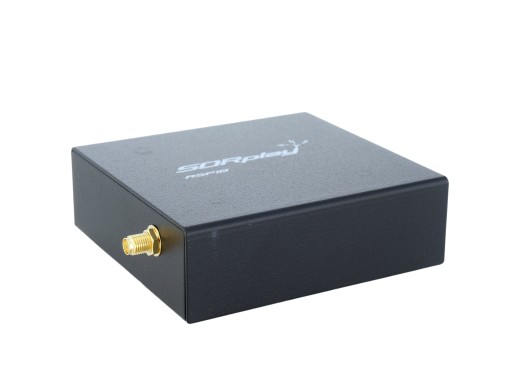

SDRplay RSP1B RF receiver

The SDRplay RSP1B is a Radio Spectrum Processor SDR receiver with a reception from 1kHz up to 2GHz. The RSP1B is the enhanced version of the RSP1A. The RSP1B has improved noise performance below 1MHz, which can be seen in the second picture, and it has improved signal handling at HF frequencies. Furthermore, the RSP1B has a metal housing.
The RSP1B is designed around the concept of Software Defined Radio (SDR) technology, which is a radio communication system in which components that would typically be implemented in hardware are executed by means of software on a PC or an embedded system. Using this software, these components can therefore be used as an RF spectrum analyser.

The RSP1B has a bandwidth of 10MHz and can also sample in real-time over this bandwidth, which is a big advantage compared to the standard spectrum analysers that generally use Sweep sampling. The receiver has a spectrum that starts at 1kHz, continues to LF, MW, HF, VHF, UHF, L-band and stops at 2GHz, without interruptions in the spectrum. The receiver is also equipped with 11 high-performance low-, band- and high-pass filters.

It is a very universal system that is compatible with every popular SDR software such as HDSDR, SDR Console and Cubic SDR. In addition, it is compatible with SDRuno, which is included by default by SDRplay. The RSP1B is a separate module that has to be used in combination with a PC and an antenna. The spectrum can then be analyzed via the software on the PC. The nice thing about the RSP1B compared to similar modules is that it is equipped with a 14-bit ADC silicon technology. The receiver also has a user-friendly interface, where it is powered by the USB cable (not included) and has only an SMA antenna connection.

The SDRplay RSP1B is, all in all, a receiver with a very long range, a low noise floor and a user-friendly interface.

An USB cable is not included with the RSP1B. It is recommended to order this USB cable together with the RSP1B. This cable includes 2 ferrite beads.

CAUTION: The input of the SDRPlay is very sensitive to ESD discharges and excessive input power. This product should be used with great care. A faulty input will never be repaired by SDRPlay under warranty.

Specifications

Downloads

SDRplay RSP1B datasheet	(230.52 KB)	Download
Must read: protect your SDRPlay from RF damage	(4.49 MB)	Download
