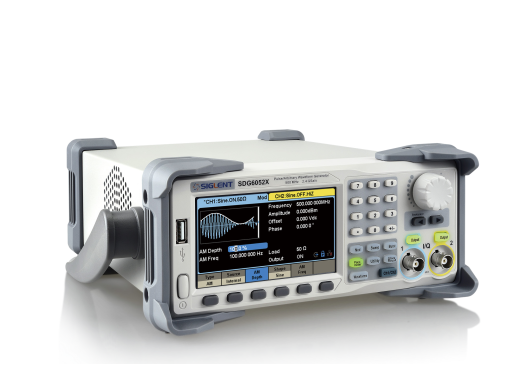

The SDG6000X by Siglent are high end 2-channel arbitrary function generators with a large bandwidth and sample rate and various functions that set it apart from the competition. One of these functions is the huge vertical resolution of 16-bits.
Other features that set it apart are the TrueArb and EasyPulse technologies which solve problems inherently connected to DDS generators. TrueArb allows the negation of distortion and jitter. EasyPulse allows great reproduction of pulse and block-wave signals, even if frequencies of the signal are not an integer multiple of the clock frequency of the generator.
Various other properties like broad modulation abilities finish off the package of this great function generator.
The generators come equipped with various connectors which allow control from a computer. One can use software to design signals that are up to 20 MPts long.
The models in the SDG6000X series differ mainly in bandwidth. The major differences in specs are listed in the table below.
Model | SDG6022X | SDG6032X | SDG6052X |
---|---|---|---|
Maximal frequency (Sin) | 200 MHz | 350 MHz | 500 MHz |
Maximal frequency (Pulse) | 80 MHz | 150 MHz | 150 MHz |
Maximal frequency (Block) | 80 MHz | 120 MHz | 120 MHz |
Maximal frequency (Ramp) | 5 MHz | 5 MHz | 5 MHz |
Maximal frequency (Arb) | 50 MHz | 50 MHz | 50 MHz |
Price |
Vertical resolution | 16 bits |
Display | 4,3" touch-screen TFT, 480x272 pixels |
Built in functions | a.o. Sine, Square, Ramp, Pulse, Noise, Arbitrary, DC Check the datasheet for a more detailed list. |
Output impedance | 50 Ω |
Function length | 20 Mpts |
Amplitude range (Double for high impedance loads) |
1 mVpp - 10 Vpp (50 Ω, < 40MHz) 1 mVpp - 5 Vpp (50 Ω, 40~120MHz) 1 mVpp - 2.5 Vpp (50 Ω, 120~160MHz) 1 mVpp - 1.5 Vpp (50 Ω, 160~350MHz) 1 mVpp - 0.6 Vpp (50 Ω, > 350MHz) |
Channels | 2 |
Connectivity | USB 2.0 type B, LAN |
Weight (without box) | 3.5 Kg |
Dimensions | 260 x 107 x 295 mm (BxHxL) |
For a more detailed list of specifications please consult the datasheet listed below.
