Siglent SDG6032X function generator
Details

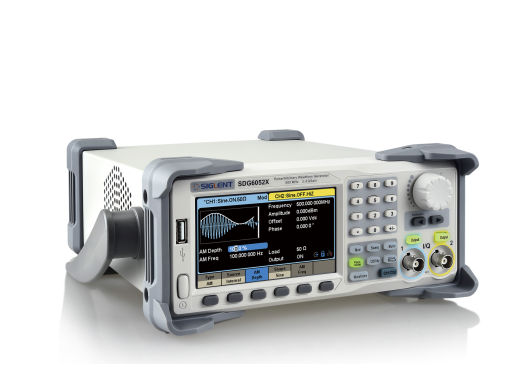

The SDG6000X from Siglent are high end 2 channel function generator with a very wide frequency range and sample rate and several features that take it to a different level than the competition. For example, one of these features that sets it apart is its gigantic 16-bit vertical resolution.
Other special features are the TrueArb and EasyPulse techniques that solve problems inherent in DDS generators. TrueArb has the advantage of reducing jitter and distortion. EasyPulse enables the generation of virtually jitter-free square waves and pulses, even when the frequency is not an integer multiple of the clock frequency.
Several other features such as extensive modulation, burst, and sweep capabilities complete the picture.
The generators have several connections that allow them to be connected to a computer. This makes it possible to create signals with supplied programs.
Model overview
The models in the SDG6000X series differ primarily in bandwidth. The most important specifications are listed side by side in the table below.
| Model | SDG6022X | SDG6032X | SDG6052X |
|---|---|---|---|
| Maximum frequency (Sin) | 200 MHz | 350 MHz | 500 MHz |
| Maximum Frequency (Pulse) | 80 MHz | 150 MHz | 150 MHz |
| Maximum frequency (Block) | 80 MHz | 120 MHz | 120 MHz |
| Maximum Frequency (Ramp) | 5 MHz | 5 MHz | 5 MHz |
| Maximum frequency (Arb) | 50 MHz | 50 MHz | 50 MHz |
| Price (including VAT) |
Specifications
| Vertical resolution | 16 bits |
| Display | 4.3" touchscreen TFT, 480x272 pixels |
| Built-in functions | including Sine, Square, Ramp, Pulse, Noise, Arbitrary, DC See datasheet for other functions present. |
| Output impedance | 50 Ω |
| Frequency range | 1 μHz -80 MHz/120MHz/160MHz |
| Amplitude range | 1 mVpp - 10 Vpp (50 Ω, < 40MHz) 1 mVpp - 5 Vpp (50 Ω, 40~120MHz) 1 mVpp - 2.5 Vpp (50 Ω, 120~160MHz) 1 mVpp - 1.5 Vpp (50 Ω, 160~350MHz) 1 mVpp - 0.6 Vpp (50 Ω, > 350MHz) |
| Number of channels | 2 |
| Connections | USB 2.0 type B, LAN |
| Weight (without box) | 3.5 Kg |
| Dimensions | 260 x 107 x 295 mm (WxHxL) |
For more information, please see the manufacturer's datasheet below for a comprehensive list of specifications.
Options
| Power amplifier | This function generator option is very useful when you need a larger output power. | |
| USB -GPIB | This option allows you to control the function generator via GPIB. |
Accessories
Function generators from the Siglent SDG6000X series are supplied including:
- Quick start manual (English).
- Calibration certificate
- 2x USB cable
- Power cord
Optionally, it is possible to expand the generators with a GPIB connection.
