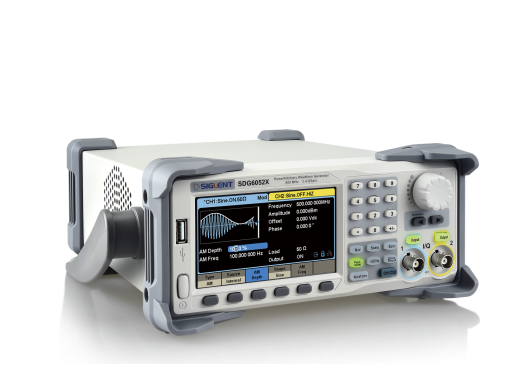

The SDG6000X by Siglent are high end 2-channel arbitrary function generators with a large bandwidth and sample rate and various functions that set it apart from the competition. One of these functions is the huge vertical resolution of 16-bits.

Other features that set it apart are the TrueArb and EasyPulse technologies which solve problems inherently connected to DDS generators. TrueArb allows the negation of distortion and jitter. EasyPulse allows great reproduction of pulse and block-wave signals, even if frequencies of the signal are not an integer multiple of the clock frequency of the generator.

Various other properties like broad modulation abilities finish off the package of this great function generator.

The generators come equipped with various connectors which allow control from a computer. One can use software to design signals that are up to 20 MPts long.

Models

The models in the SDG6000X series differ mainly in bandwidth. The major differences in specs are listed in the table below.

ModelSDG6022XSDG6032XSDG6052X
Maximal frequency (Sin) 200 MHz 350 MHz 500 MHz
Maximal frequency (Pulse) 80 MHz 150 MHz 150 MHz
Maximal frequency (Block) 80 MHz 120 MHz 120 MHz
Maximal frequency (Ramp) 5 MHz 5 MHz 5 MHz
Maximal frequency (Arb) 50 MHz 50 MHz 50 MHz
Price 1309 €1,309.00 Excl. VAT 2909.09 €2,909.09 Excl. VAT 4541.32 €4,541.32 Excl. VAT

Specifications

Vertical resolution 16 bits
Display 4,3" touch-screen TFT, 480x272 pixels
Built in functions a.o. Sine, Square, Ramp, Pulse, Noise, Arbitrary, DC
Check the datasheet for a more detailed list.
Output impedance 50 Ω
Function length 20 Mpts
Amplitude range
(Double for high impedance loads)
1 mVpp - 10 Vpp (50 Ω, < 40MHz)
1 mVpp - 5 Vpp (50 Ω, 40~120MHz)
1 mVpp - 2.5 Vpp (50 Ω, 120~160MHz)
1 mVpp - 1.5 Vpp (50 Ω, 160~350MHz)
1 mVpp - 0.6 Vpp (50 Ω, > 350MHz)
Channels 2
Connectivity USB 2.0 type B, LAN
Weight (without box) 3.5 Kg
Dimensions 260 x 107 x 295 mm (BxHxL)

For a more detailed list of specifications please consult the datasheet listed below.

Accessories

Function-generators in the SDG6000X series come bundled with:

  • Quick-start guide
  • Calibration certificate
  • 2x USB cable
  • Power cord

Optionally the devices can be equipped with a GPIB connection.
