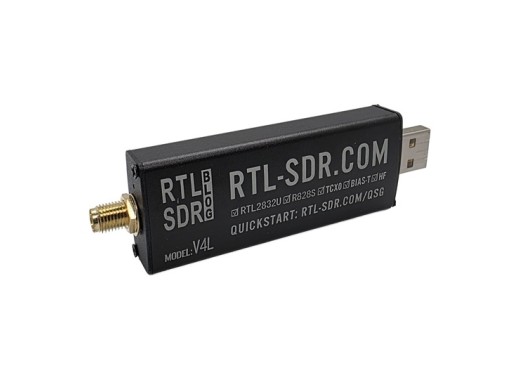

RTL-SDR Blog V4L dongle
Details
The V4L is the latest entry-level SDR (Software Defined Radio) from the well-known brand RTL-SDR Blog. Covering the frequency range from 500kHz to 1.766GHz, the unit works as a wideband radio scanner, so hobbyists can listen to amateur radio, track aircraft and ships, receive weather satellite images, and much more. Additionally, the built-in upconverter allows better reception of shortwave radio.
At Eleshop, we sell the original version. Therefore, the unit has multiple advantages over its counterfeits, such as a software-switchable bias tee to power e.g. an active antenna, a TCXO that keeps the radio accurately tuned, and a lower sensitivity to outside noise. To check whether the unit is the original one, visit the official RTL-SDR Blog website. We also sell this unit with an antenna kit.
Specifications
| Frequency range | 500 kHz - 1.766 GHz |
| Bandwidth | 2.56 MHz stable (up to 3.2 MHz with drops) |
| Tuner chip | R828S |
| ADC chip | RTL2832U 8-bit |
| HF reception | Upconverter with 28.8 MHz LO |
| Oscillator stability | 1 PPM TCXO |
| Bias tee | 4.5 V, 180 mA (switchable in software) |
| Input impedance | 50 Ω |
| Input connector | SMA |
| USB connector | USB-A male |
| Current draw | 250 - 270 mA |
| Enclosure | Aluminium |
| Transmit capability | None |
Pros and cons
- Built-in HF upconverter
- Software-switchable bias tee
- 1PPM TCXO
- Requires up-to-date drivers
- Only diplexed filtered input
Downloads
| RTL-SDR Blog V4L datasheet |  (273.97 KB) | Download |
