RTL-SDR Blog V4L + antenna kit
Details
The V4L with a dipole antenna kit is the latest entry-level SDR (Software Defined Radio) from the well-known brand RTL-SDR Blog. Covering the frequency range from 500kHz to 1.766GHz, the unit works as a wideband radio scanner, so hobbyists can track aircraft and ships, receive weather satellite images, and much more. Additionally, the built-in upconverter improves shortwave reception, and the dipole kit allows outdoor mounting for stronger signals.
At Eleshop, we sell the original version, which has multiple advantages over counterfeits, such as a software-switchable bias tee, a TCXO that keeps the radio accurately tuned, and a lower sensitivity to outside noise. To check whether the unit is the original one, visit the official RTL-SDR Blog website. We also sell this unit as a dongle only.
Specifications
| Frequency range | 500 kHz - 1.766 GHz |
| Bandwidth | 2.56 MHz stable (up to 3.2 MHz with drops) |
| Tuner chip | R828S |
| ADC chip | RTL2832U 8-bit |
| HF reception | Upconverter with 28.8 MHz LO |
| Oscillator stability | 1 PPM TCXO |
| Bias tee | 4.5 V, 180 mA (switchable in software) |
| Input impedance | 50 Ω |
| Input connector | SMA |
| USB connector | USB-A male |
| Current draw | 250 - 270 mA |
| Enclosure | Aluminium |
| Transmit capability | None |

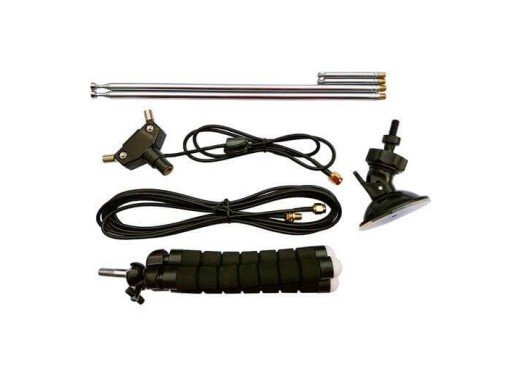

Accessories
- 2x Telescopic antenna (23 cm to 1 m)
- 2x Telescopic antenna (5 cm to 13 cm)
- Dipole antenna base with 60 cm RG174 cable
- 3 m RG174 extension cable
- Flexible tripod mount
- Suction cup mount
Pros and cons
- Dipole antenna kit with suction cup and tripod mounts
- Built-in HF upconverter
- Software-switchable bias tee
- 1PPM TCXO
- Antennas not suitable for permanent outdoor use
- Only diplexed filtered input
- Requires up-to-date drivers
Downloads
| RTL-SDR Blog V4L datasheet |  (273.97 KB) | Download |
