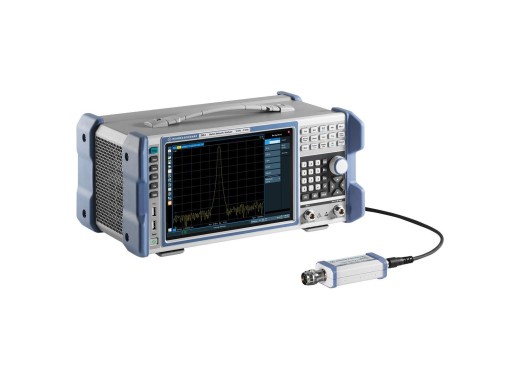

Rohde & Schwarz ZNL20 vector network analyser
Details
The Rohde & Schwarz ZNL20 is a high-end vector network analyser and a part of the ZNL series. This analyser comes with a frequency range of 5kHz - 20GHz. The ZNL20 has a two-port design that allows for bidirectional measurements and offers a low trace noise of 0.001dB typically. This results in highly accurate and stable measurements even at wider bandwidths. The ZNL series features a wide 10.1" capacitive touchscreen for convenient configuration with multitouch gesturing. This large touchscreen can simultaneously display multiple measurement modes with the MultiView function. Finally, the ZNL series VNA features USB and LAN interfaces.
For a vector network analyser with a fully integrated PC with Windows 10, please check out the Rohde & Schwarz ZNLE series.
Model overview
| Model | ZNL3 | ZNL4 | ZNL6 | ZNL14 | ZNL20 |
|---|---|---|---|---|---|
| Bandwidth | 5 kHz - 3 GHz | 5 kHz - 4.5 GHz | 5 kHz - 6 GHz | 5 kHz - 14 GHz | 5 kHz - 20 GHz |
| Port types | Type N (female) | Type N (female) | Type N (female) | Type N (female) | 3.5 mm (male) |
| Price |
Specifications
| Ports | 2 |
| Frequency resolution | 1 Hz |
| Amplitude resolution | 0.01 dB |
| IFBW | 1 Hz - 500 kHz |
| Dynamic range | 130 dB (typ.) |
| Noise floor | -140 dBm/Hz (typ.) |
| Max. input level | +15 dBm |
| Interfaces | USB host/device, LAN, RJ-45 |
| Display | 10.1" WXGA color LCD, multitouch |
| Dimensions | 408 x 186 x 235 mm |
| Weight | 6 kg |
Accessories
The following accessories are included with the ZNL series:
- Power cord
Downloads
| R&S ZNL- Datasheet |  (1.99 MB) | Download |
| R&S ZNL_ZNLE - User manual | (25.8 MB) | Download |
