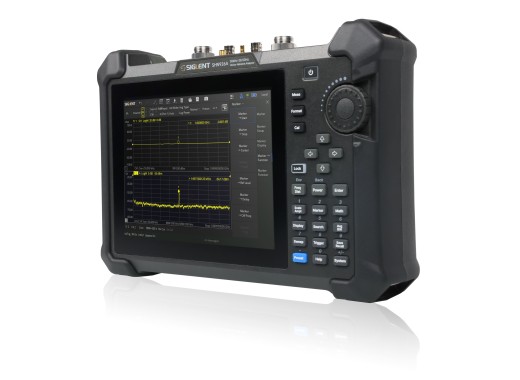

Siglent SHN914A portable vector network analyser
Details
The Siglent SHN900A series vector network analysers are a high-end portable analysers series. The SNH914A comes with a frequency range of 30kHz-14GHz. It has a large 8.4" touchscreen display, together with a full keyboard control on the side. Even though it is a handheld vector network analyser, it can still compete with its desktop competitors.
There are separate spectrum analyser, time domain and enhanced time domain options available. With these options, the SHN900A series integrates vector network analysis, spectrum analysis, cable and antenna analysis among other functions. The SHN900A comes standard with a GPS function, which can provide geographical position when measuring and the device has a working time of 4 hours.
Model overview
We offer multiple models in the SHN900A series, differing in the frequency range.| Model | SHN914A | SHN920A | SHN926A |
|---|---|---|---|
| Frequency range | 30 kHz - 14 GHz | 30 kHz - 20 GHz | 30 kHz - 26 GHz |
| Price |
Specifications
| Ports | 2 |
| Frequency resolution | 1 Hz |
| Amplitude resolution | 0.01 dB |
| Dynamic range | 110 dB |
| Noise floor | -130 dBm/Hz |
| Max. input level | +10 dBm |
| Interfaces | USB host/device, LAN, SCPI |
| Display | 8.4" TFT LCD |
| Dimensions | 310 x 215 x 78.5 mm |
| Weight | 3.2 kg |
Options
Below you can find all software options that can be used to extend the capabilities of your SHN900A vector network analyser.
| Upgrade your SHN900A series with time domain analysis with this option. | |
| Upgrade your SHN900A series with enhanced time domain analysis with this option. | |
| Upgrade your SHN900A series with spectrum analysis with this option. |
Accessories
The Siglent SHN914A vector network analyser comes with:
- USB-C cable
- AC-DC adapter
- Rechargeable battery (built-in)
- Portable bag
Pros and cons
- Easy to operate
- Can be extended with many options
- Portable
Downloads
| Siglent SHN900A datasheet |  (1.94 MB) | Download |
| Siglent SHN900A user manual | (9.73 MB) | Download |
