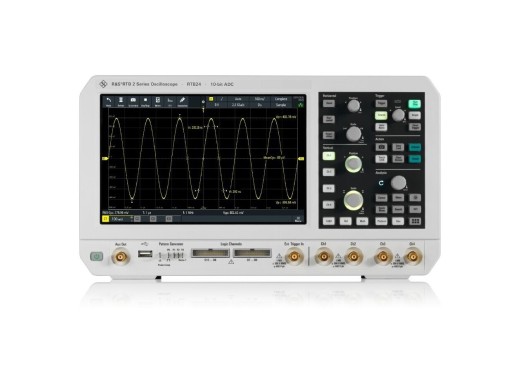

Rohde & Schwarz RTB24 oscilloscope
Details
The Rohde & Schwarz RTB24 is a 10-bit digital oscilloscope part of the RTB2 series. It features 4 channels with a bandwidth of 70MHz. The RTB2 series has a sensitivity of 1mV/div, a sample rate of 2.5GSa/s and a maximum memory depth of 20Mpts. These oscilloscopes also feature a 10-bit A/D converter, resulting in a fourfold improvement in signal reproduction compared to the standard 8-bit A/D converters found in similar oscilloscopes. Furthermore, the RTB22 is equipped with a large 10.1” capacitive touchscreen with intuitive touch controls. Finally, the RTB2 series comes with the B6 function generator option, which generates waveforms up to 50Mbit/s, useful for education and prototyping hardware and the K15 option, allowing the user to view history and permits oscilloscope memory to be segmented so that the waveform capture rate comes up to 100,000 wfm/s by default.
By default, these oscilloscopes have a bandwidth of 70MHz, which you can further expand to 100, 200 or 300MHz. Please refer to the bandwidth upgrades below for more information on these expansions. Other options can be viewed at the bottom of the page.
We also offer the RTB2-BNDL bundle which comes with the RTB24, RTB-B243 300MHz upgrade and RTB2-PK1 application bundle.
Model overview
| Model | RTB22 | RTB24 |
| Channels | 2 | 4 |
| Price |
Specifications
| Bandwidth | 70 MHz |
| Memory depth | 20 Mpts (divided by number of active channels) |
| Sample rate | 2.5 GS/s (divided by number of active channels) |
| Waveform capture rate | 50,000 wfm/s |
| Vertical resolution | 10 bits |
| Vertical scale | 1 mV/div - 10 V/div |
| Horizontal scale | 1 ns/div - 500 s/div |
| Interfaces | USB Host, USB Device, LAN |
| Display | 10.1" capacitive touchscreen (1280 x 800 pixel) |
| Dimensions | 390 x 220 x 152 mm |
| Weight | 2.5 kg |
Accessories
The Rohde & Schwarz RTB24 oscilloscope comes with:
- Power cord
- 4x Rohde & Schwarz RT-ZP03S passive probes
Bandwidth upgrades
There are 3 options to expand the bandwidth. By clicking on the code of an option you will be redirected to a page where you can order the upgrade.
| Model | RTB22 | RTB24 |
| 100 MHz | RTB-B221 | RTB-B241 |
| 200 MHz | RTB-B222 | RTB-B242 |
| 300 MHz | RTB-B223 | RTB-B243 |
Options
Additional optional software functions are available for these oscilloscopes. A number of these are listed in the table below. By clicking on the code of the options you will be redirected to the page where you can add these options to your shopping cart. If you need other software functions, please contact us.
| RTB-K1 | This option enables the I2C and SPI trigger and decoding functionalities. |
| RTB-K2 | This option enables the UART/RS-232/RS-422/RS485 trigger and decoding functionalities |
| RTB-K3 | This option provides the CAN/LIN trigger and decoding functionalities. |
| RTB-K36 | With this option you enable your RTB2 oscilloscope to make bodeplots up to 25 MHz. |
| RTB2-B1 | This option is a set of two 300 MHz MSO logic probes. |
| RTB2-PK1 | This bundle option consists of the RTB-K1, RTB-K2, RTB-K3 and RTB-K36. |
| RTB-Z1 | This is the front cover for the oscilloscopes. |
| RTB-Z3 | This is a carrier bag for the oscilloscopes, making it easier and more convenient to carry. |
