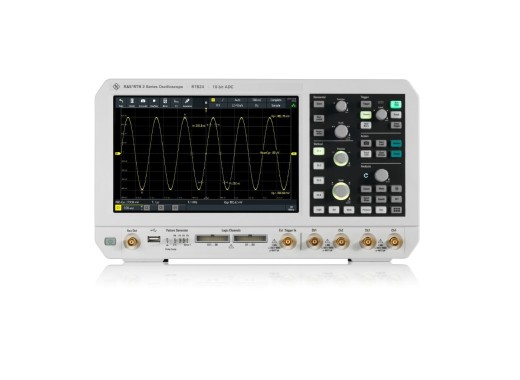

Rohde & Schwarz RTB2-BNDL promotion
Details
The Rohde & Schwarz RTB2-BNDL consists of a RTB24 4-channel oscilloscope, a RTB-B243 300MHz bandwidth upgrade and a RTB2-PK1 application bundle. This means the standard 70MHz bandwidth is upgraded to a maximum of 300MHz by default.
The RTB2-PK1 application bundle consists of 4 options: the RTB-K1 (I2C/SPI serial triggering and decoding), the RTB-K2 (UART/RS-232/RS-422/RS-485 serial triggering and decoding), the RTB-K3 (CAN/LIN serial triggering and decoding) and the RTB-K36 option (providing frequency response analysis). Also included are 4 RT-ZP03S 300 MHz passive probes, one for each channel.
Specifications
| Channels | 4 |
| Bandwidth | 300 MHz |
| Memory depth | 20 Mpts (divided by number of active channels) |
| Sample rate | 2.5 GS/s (divided by number of active channels) |
| Waveform capture rate | 50,000 wfm/s |
| Vertical resolution | 10 bits |
| Vertical scale | 1 mV/div - 10 V/div |
| Horizontal scale | 1 ns/div - 500 s/div |
| Interfaces | USB Host, USB Device, LAN |
| Display | 10.1" capacitive touchscreen (1280 x 800 pixel) |
| Dimensions | 390 x 220 x 152 mm |
| Weight | 2.5 kg |
Accessories
The Rohde & Schwarz RTB2-BNDL is supplied including
- 4x Rohde & Schwarz RT-ZP03S passive probes
- Power cord
