Rohde & Schwarz RT-ZH03 high voltage probe
Details

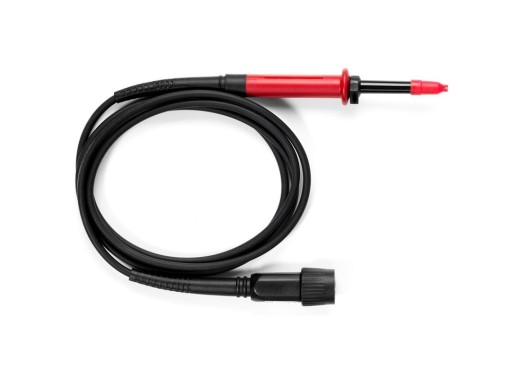

The Rohde & Schwarz RT-ZH03 passive high-voltage probe is part of the RT-ZH series of probes. It has a 250MHz bandwidth, can measure a maximum voltage of 850V (RMS), and has an attenuation factor of 100:1. The RT-ZH03 features a robust 5mm probe tip.
Specifications
| Bandwidth | 250 MHz |
| Maximum voltage | 850 V |
| Input impedance | 100 MΩ/6.5 pF |
| Attenuation | 100:1 |
Compatibility
Below you can find an overview of all Rohde & Schwarz oscilloscopes available on Eleshop this probe is compatible with.| RTC1000 series | |
| RTB2000 series |
|
| RTM3000 series |
|
| RTA4000 series |
Pros and cons
- High quality
Downloads
| Rohde & Schwarz probes datasheet |  (8.95 MB) | Download |
