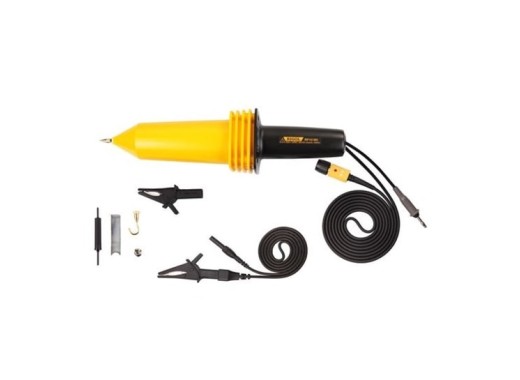

Rigol RP1018H high voltage probe

519 €519.00 Excl. VAT
Loading stock info
  •
Product number: ELE007536

Be the first to review this product

Lowest price guaranteed

Details

The Rigol RP1018H is a high voltage passive probe, with a 150MHz bandwidth, a max. of 18kV DC voltage (CAT II), and a division ratio of 1000:1. it complies with EN61010-031 the standard.

Specifications

Bandwidth ~150 MHz
Max. input18kV (DC+AC peak)
Input resistance 200 MΩ
Input capacitor 1.5 PF
Division ratio 1000:1
Dimensions 80 x 80 x 320 mm
Weight 460 g

Accessories

The RP1018H comes by default with:

  • Test CR
  • Adjust bar
  • Carrying case

Downloads

Rigol RP1018H user guide
pdf (250.15 KB)Download
