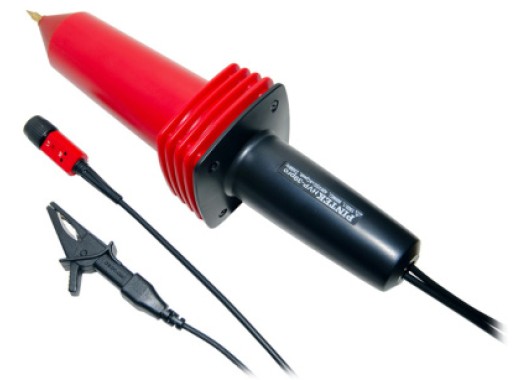

Pintek HVP-39 Pro probe
Details
Pintek HVP-39pro high voltage 1000:1 probe, filled with an inert gas to protect the parts from oxidation and transshipment in humid air.
Specifications
| Impedance | 900 MΩ // 2pF |
| Max peak voltage | 34 kV (DC + ACp-p CAT II |
| Max RMS voltage | 18 kV (DC + ACp-p CAT II |
| Max current | 45 µA |
| Bandwidth | 50 MHz (DC) |
| Rise time | 1.6 ns |
| Accuracy DC voltage | 3% (0-35 kV) |
| Accuracy AC voltage | 3% (@1 kHz) |
| Temperature coeff. | 200 ppm/C |
| Cable length | 2 m |
